3500V 2UEW-F-PET(N) 12.1mm×3.4mm Rectangular Mylar Litz Wire For Transformer

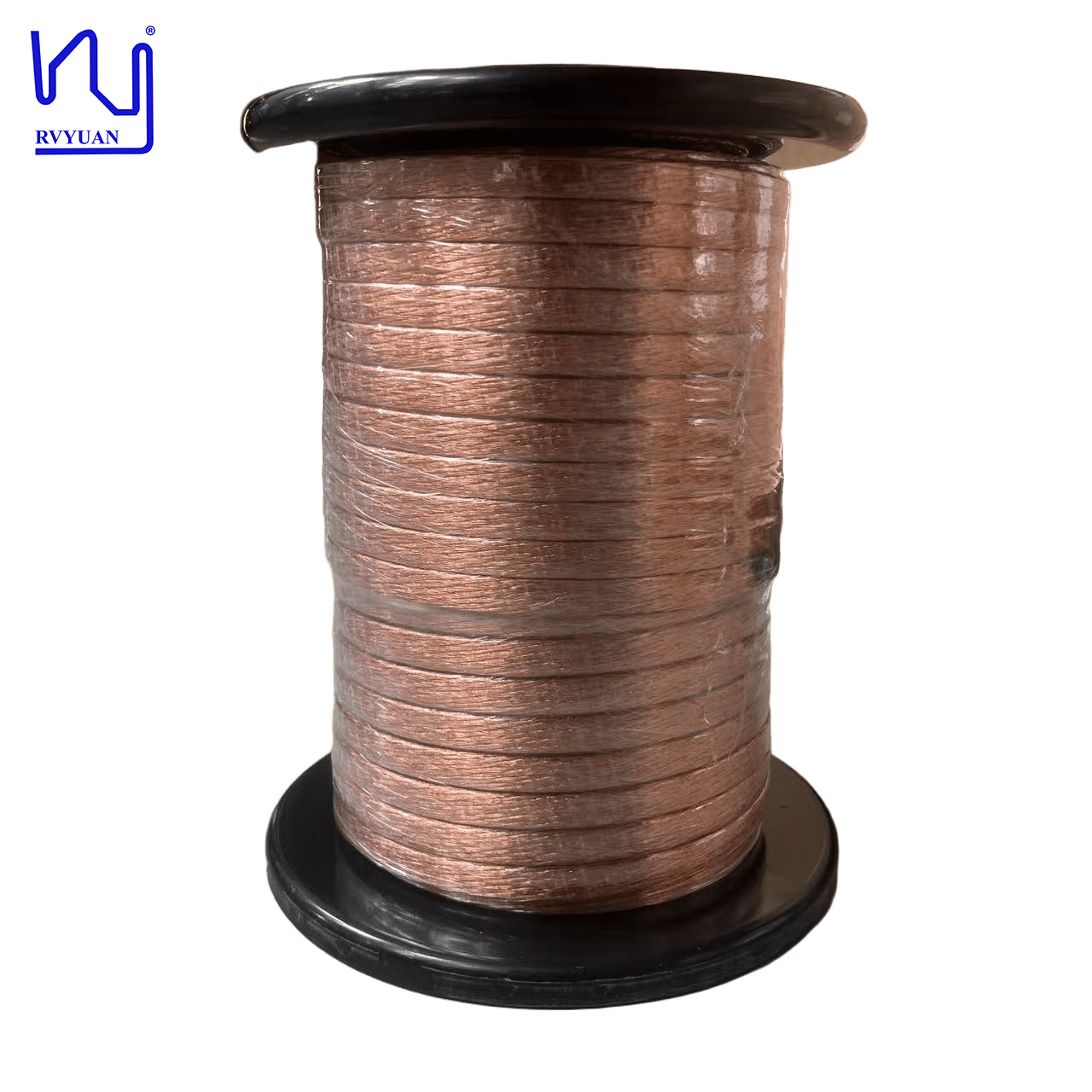

Our rectangular Mylar Litz wire is engineered for space-constrained high-frequency applications where efficiency and cost are critical. The construction begins with 0.28 mm enameled copper wire, where 300 individual wires are precisely twisted together and compressed into a flat rectangular profile measuring 12.1 mm wide by 3.4 mm thick. This creates a super high aspect ratio that maximizes conductor surface area while minimizing total height, making it ideal for compact coil constructions.
Technical Specifications
Name: Mylar Litz wire
Spec: 0.28X 300
Model: 2UEW-F-PET(N)
Tape Name: PET(N)
| Item |
Tech Requirement |
Sample 1 |
| Single Wire Diameter (mm) |
0.298-0.313 |
0.300-0.307 |
| Conductor Diameter (mm) |
0.28±0.004 |
0.277-0.279 |
| Width (mm) |
12.1±0.3 |
11.90-12.21 |
| Depth (mm) |
3.4±0.2 |
3.20-3.40 |
| Resistance (Ω/m) |
≤0.001039 |
0.000946 |
| Dielectric Strength (V) |
≥3500 |
4000 |
| Pitch (mm) |
Parallel |
Parallel |
| No. Of Strands |
300 |
15x5x4 |
| Tape Overlap (%) |
≥50 |
54 |
| Winding |
NO crack |
ok |
Applications
Typical use cases include high-frequency transformers, inductors, and power modules applied in consumer, automotive, and industrial power supplies where excellent heat dissipation is required. This Mylar Litz wire provides a comprehensive solution offering form-factor flexibility, electrical reliability, and cost-effective insulation.
Frequently Asked Questions
Can I get samples for testing before placing a batch order?
Yes. Samples are either free or charged, but the shipping cost is borne by the customer.
What is your delivery lead time?
Sample orders: 3-5 working days; bulk orders: completed within 15 working days after order confirmation.
What is the procurement process?
Submit inquiry with requirements → Sample making → Sample approval → Quotation → Proforma Invoice (PI) → PI confirmation → Payment arrangement → Production → Shipment
Can I customize products with my own logo, size, and shape?
Yes, but the MOQ (Minimum Order Quantity) is subject to negotiation.
What are your payment methods?
T/T, D/P, L/C, PayPal.
Which courier services do you use?
FedEx, DHL, TNT, UPS, with discounts up to 80%.
What testing equipment do you have?
Laser diameter gauge, high-voltage spark tester, elongation tester, spring-back tester, withstand voltage tester, solderability tester, Resistance Tester etc.
Which customers or markets are your products suitable for?
Our products are ideal for applications requiring high efficiency and space-saving solutions in high-frequency AC environments, including power electronics & power supplies, EV on-board chargers, wireless charging systems, green energy, communications & IT, medical equipment, industrial robots, servo motors, etc.
Which countries or regions have you exported to?
Major markets include Europe and the US, as well as South Korea, Japan, India, and Southeast Asia.
How do you keep customer information confidential?
We can sign a non-disclosure agreement (NDA) upon request and commit to strictly abiding by its terms throughout the entire cooperation process.
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
