Litz Wire Silk Covered Copper Insulated Heating Enameled Stranded QA-1 0.2mm

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	RVYUAN
Certificación:	ISO9001/ISO14001 /UL/SGS
Número de modelo:	USTC

Cantidad de orden mínima:	20kg
Precio:	Negociable
Detalles de empaquetado:	carrete con cartón
Tiempo de entrega:	15 días laborables
Condiciones de pago:	T/T/Paypal
Capacidad de la fuente:	Satisface tu demanda

Mejor precio Contactar ahora

Información detallada

Diámetro:	0,2 mm	Temperatura:	155
Certificación:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Cobre
Hilos:	1300	Voltaje de ruptura:	Mín.1600
Material de la cubierta:	Nylon	palabra clave:	Alambre Litz recubierto de seda con aislamiento de cobre, calefacción, esmaltado, trenzado, QA-1, 0,
Resaltar:	silk covered copper litz wire , QA-1 enameled stranded wire , 0.2mm insulated heating wire

Descripción de producto

Litz Wire Silk Covered Copper Insulated Heating Enameled Stranded QA-1 0.2mm

Product Overview

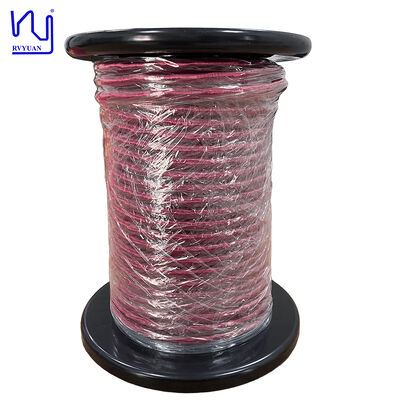

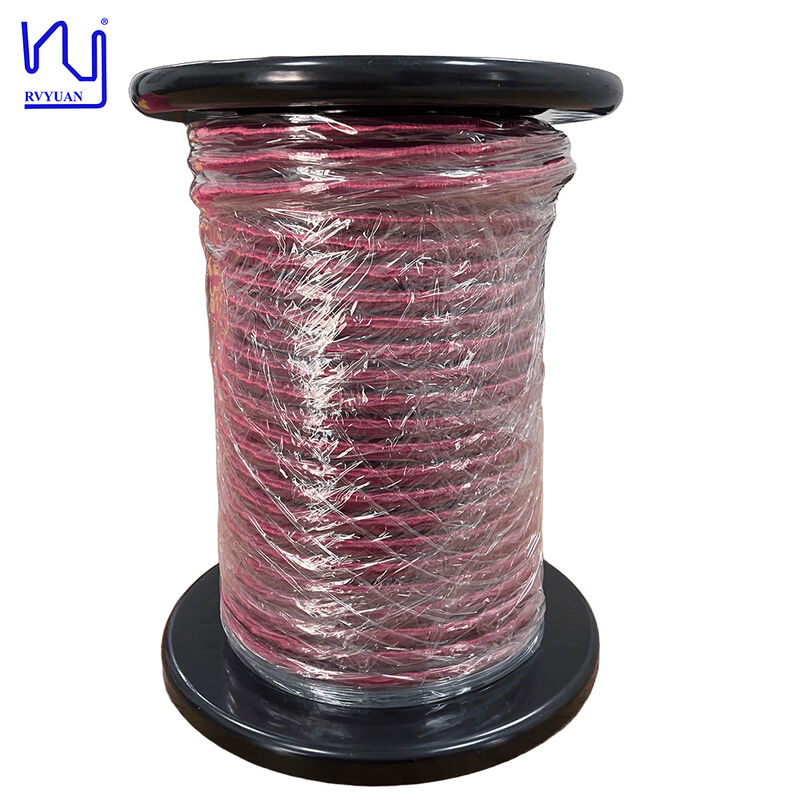

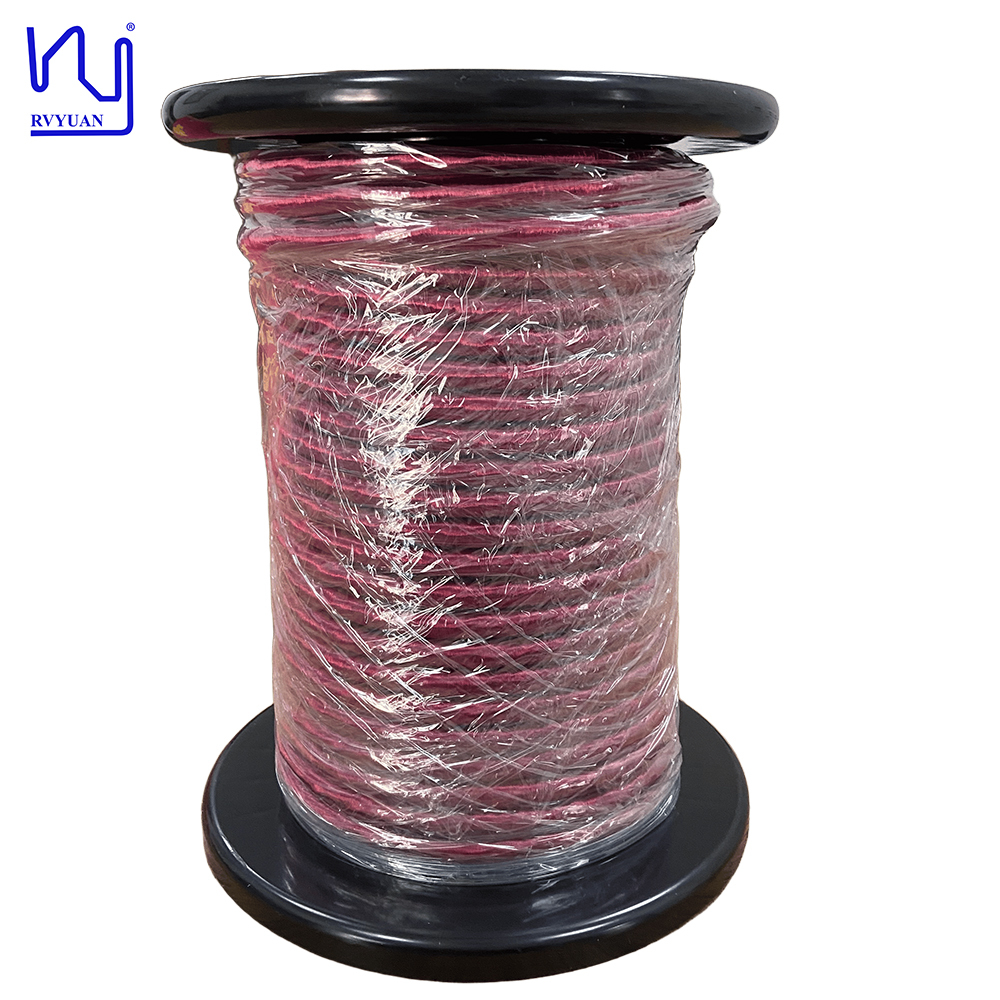

2UDTC-F 0.2mm Silk covered Copper Litz Wire featuring a distinctive pink polyester yarn wrapping. This premium litz wire is constructed from 1300 strands of 0.2mm enameled copper wire, meticulously twisted and wrapped with durable dacron yarn.

The pink polyester yarn was custom-developed for specific client requirements. We offer custom colored yarn wrapping options - please contact us to discuss your specific needs.

Technical Specifications

Item No.	Diameter of Single Wire (mm)	Conductor Diameter (mm)	Overall Dimension (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.216-0.231	0.2±0.003	Max. 11.09	≤0.000444	≥1600	78±10
Sample 1	0.220-0.223	0.198-0.20	9.78-10.25	0.0000421	2800	√

Ordering Information

Minimum order quantity: 30 kg. We welcome sample requests for evaluation purposes. Experience the superior quality and performance of our silk covered litz wire in your next design project.

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
