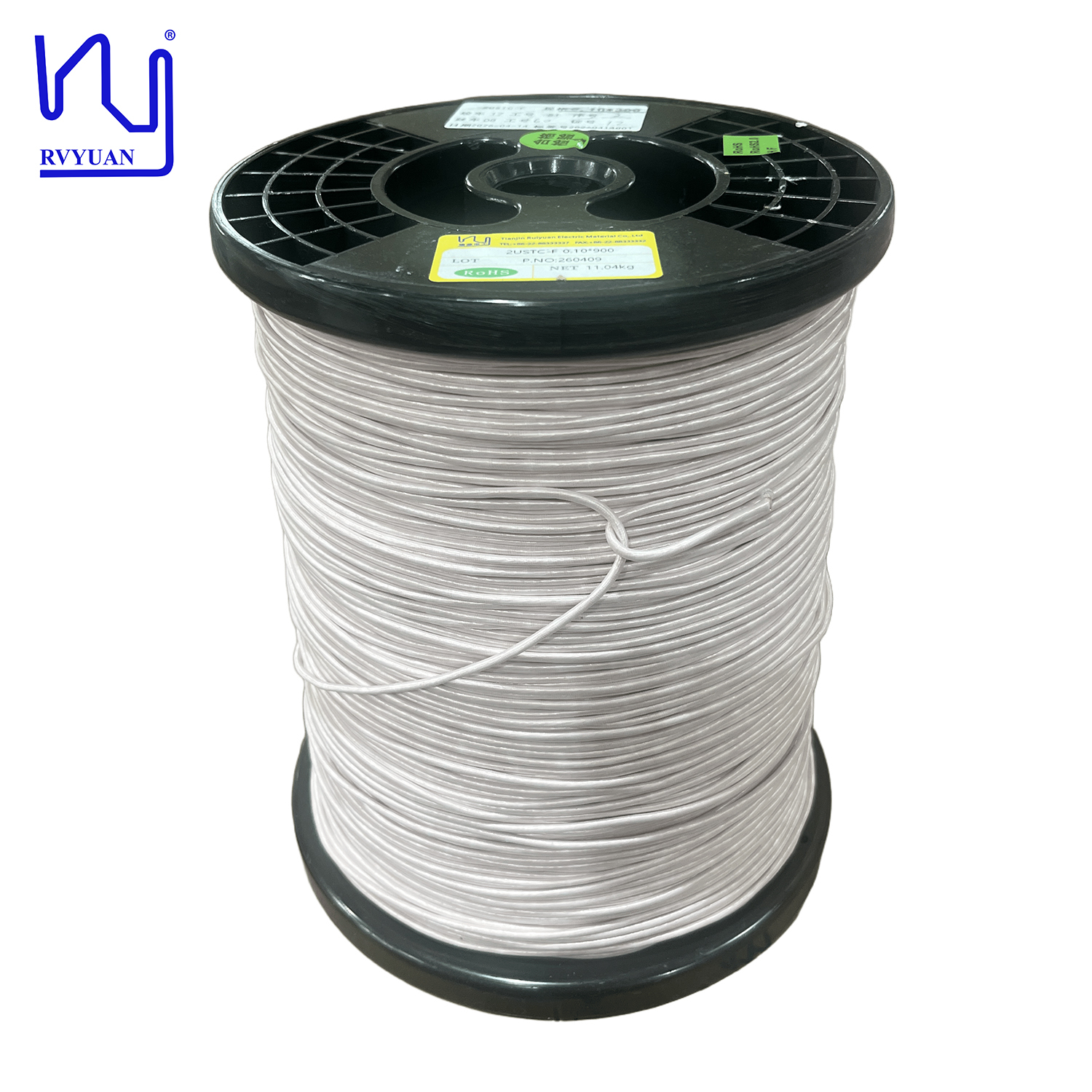

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: RVYUAN
Certificación: ISO9001/ISO14001 /UL/SGS
Número de modelo: USTC
Cantidad de orden mínima: 50 kilos
Precio: Negociable
Detalles de empaquetado: carrete con cartón
Tiempo de entrega: 15 días laborables
Condiciones de pago: T/T/Paypal
Capacidad de la fuente: Satisface tu demanda
Mejor precio Contactar ahora
Información detallada
Diámetro: 0,1 mm Temperatura: 155
Certificación: IEC/NEMA/JIS/RoHS/ISO Conductor: Cobre
Hilos: 300 Voltaje de ruptura: Mín.1100
Material de la cubierta: Nylon palabra clave: alambre de alta frecuencia de 0,1 mm, alambre magnético esmaltado, alambre Litz de cobre cubierto de
Resaltar:

0.1mm enameled magnet wire

,

high frequency Litz wire

,

silk covered copper wire

Descripción de producto

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
This silk covered litz wire features a maximum overall diameter of 2.65 mm and a minimum withstand voltage of 1100 V. We support small-batch customization with a minimum order quantity of 20 kg, making it ideal for prototype development or specialized production runs.
Key Features
  • High frequency performance for specialized applications
  • Silk covered construction for enhanced durability
  • Minimum withstand voltage: 1100V
  • Maximum overall diameter: 2.65mm
  • Small-batch customization available
  • Minimum order quantity: 20kg
Technical Specifications
Parameter Technical Requirement Sample 1 Sample 2
Outer diameter of single wire (mm) 0.107-0.125 0.110 0.113
Conductor diameter (mm) 0.10±0.003 0.098 0.100
Overall diameter (mm) Max. 2.65 2.28 2.38
Resistance Ω/m (20℃) ≤0.007937 0.007391 0.007400
Breakdown voltage (V) ≥1100 2500 2800
Pitch 47±3 √ √
Pinhole test (faults/6m) 69 faults/6m 18 14
Solderability Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue √ √
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
