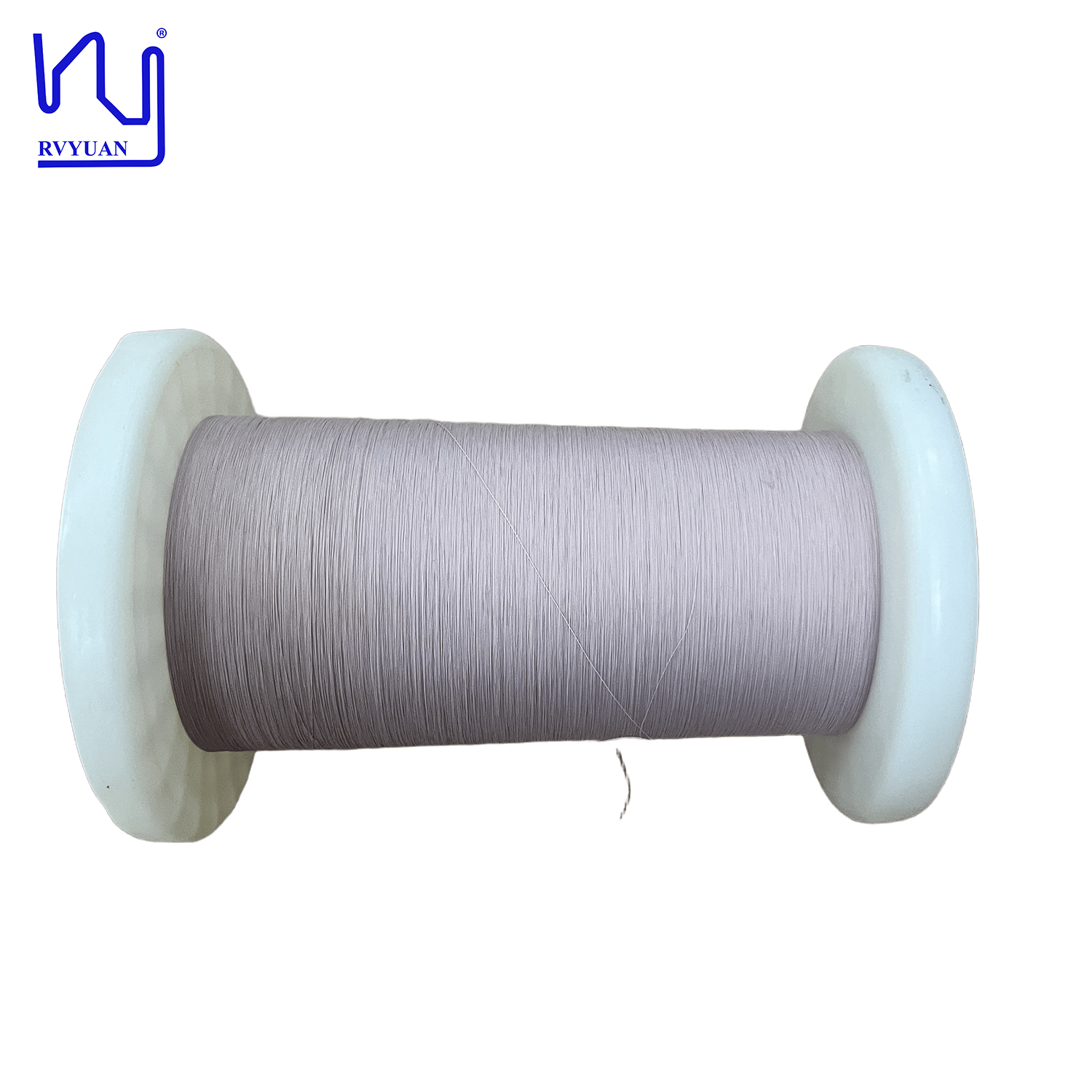

2USTC-F 0.025mmx7 Silk Covered Litz Wire For Precision Medical Sensors

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	RVYUAN
Certificación:	ISO9001/ISO14001 /UL/SGS
Número de modelo:	USTC

Cantidad de orden mínima:	3KG
Precio:	Negociable
Detalles de empaquetado:	carrete con cartón
Tiempo de entrega:	15 días de trabajo
Condiciones de pago:	T/T/Paypal
Capacidad de la fuente:	Satisface tu demanda

Mejor precio Contactar ahora

Información detallada

Diámetro:	0.025 mm	Temperatura:	155
Certificación:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Cobre
Hilos:	7	Tensión de ruptura:	Mín.500
Material de la cubierta:	Nylon	Palabra clave:	Alambre Litz cubierto de seda de 2USTC-F 0.025mmx7 para sensores médicos de precisión
Resaltar:	silk covered litz wire for medical sensors , ultra thin 0.025mm litz wire , precision medical sensor litz wire

Descripción de producto

2USTC-F 0.025mmx7 Silk Covered Litz Wire For Precision Medical Sensors

The 2USTC-F 0.025mmx7 Silk Covered Litz Wire is engineered specifically for precision medical sensors and high-end medical devices. One of the key advantages of this nylon serving litz wire is its suitability for implantable medical devices such as pacemakers and neurostimulators, where reliability and biocompatibility are paramount. Its ultra-fine diameter allows for compact designs, ensuring these devices can operate stably and reliably within the body for extended periods without compromising functionality.

Technical Specifications

Item	Technical Requirements	Test Result
Conductor Diameter (mm)	0.0250-0.0270	0.0255 \| 0.0254 \| 0.0262 \| 0.0256 \| 0.0262
Single Wire Diameter (mm)	0.0330-0.0350	0.0348 \| 0.0347 \| 0.0343 \| 0.0335 \| 0.0345
O.D. (mm)	0.107-0.141	0.113 \| 0.115 \| 0.114 \| 0.116 \| 0.116
Resistance of Single Wire Ω/m (20℃)	29.81-34.77	31.99 \| 31.76 \| 31.69 \| 32.03 \| 31.60
Resistance of Litz Wire Ω/m (20℃)	4.25-5.87	4.747 \| 4.703 \| 4.699 \| 4.726 \| 4.712
Breakdown Voltage V	Min. 500	1100 \| 1045 \| 1056 \| 1184 \| 1032
Pitch mm	3 ± 1	3 \| 3 \| 3.1 \| 3 \| 3
No. of Strands	7	7 \| 7 \| 7 \| 7 \| 7
