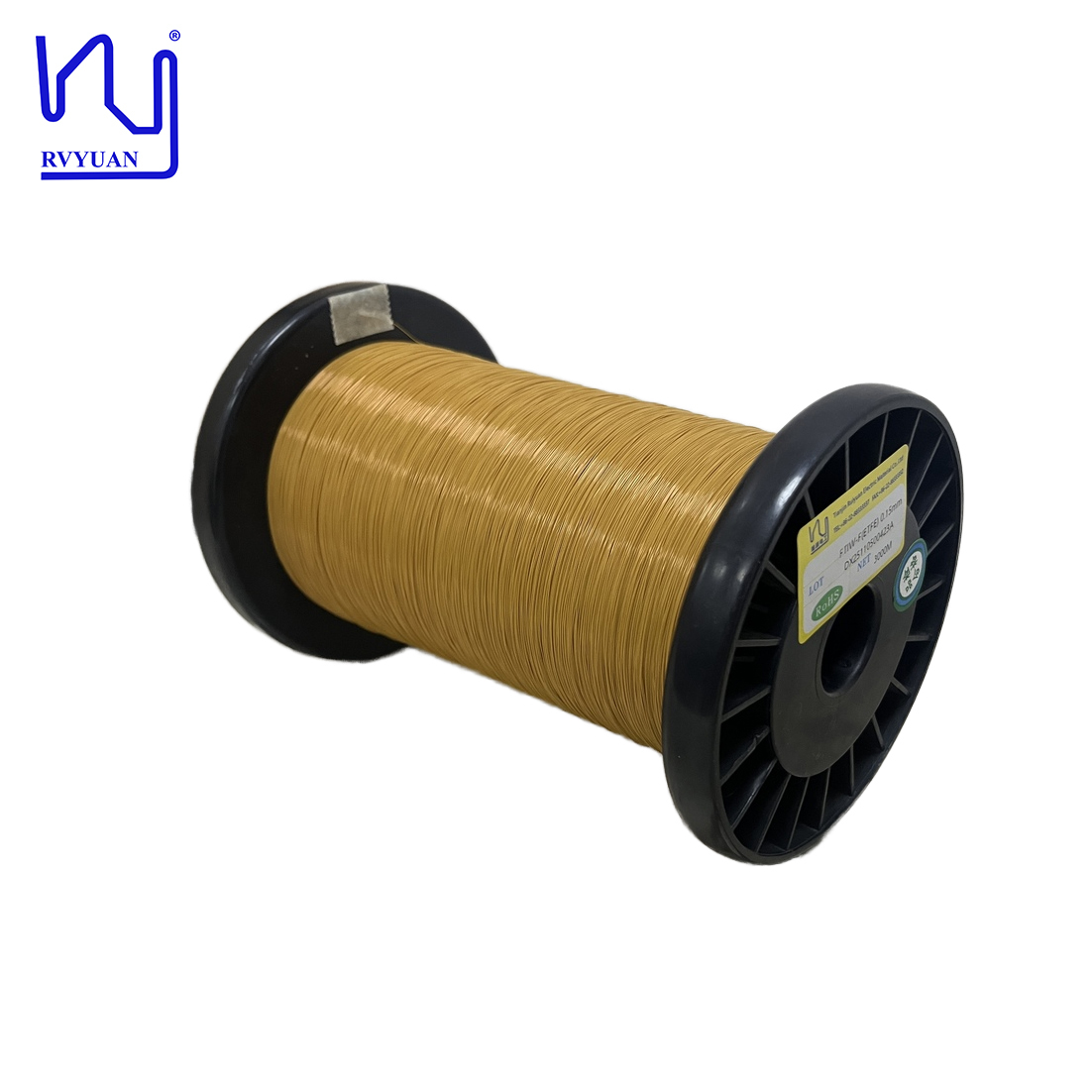

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	RVYUAN
Certificación:	UL/ISO9001/ISO14001/RoHS/Reach
Número de modelo:	0.15 mm

Cantidad de orden mínima:	3000 metros
Precio:	negotiable
Detalles de empaquetado:	caja de cartón
Tiempo de entrega:	7 dias
Condiciones de pago:	T/t/paypal
Capacidad de la fuente:	1ton/month

Mejor precio Contactar ahora

Información detallada

Nombre del producto:	Conductor de cobre aislado tripa del alambre de TIW-F 0.15m m para el transformador	Calificación térmica:	155
Diámetro de un solo alambre:	0.15 mm	Material conductor:	Cobre
Inyección:	ETFE
Resaltar:	0.15mm triple insulated wire , copper conductor transformer wire , TIW-F triple insulated wire

Descripción de producto

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer features excellent chemical and heat resistance. ETFE exhibits exceptional resistance to a wide range of chemicals, solvents, oils, and radiation, making it ideal for transformer manufacturing.

Excellent chemical and heat resistance properties
Ideal for transformer manufacturing applications
Small batch customization available (minimum 3,000 meters)
ETFE insulated litz wire options available
Custom size and strand configurations

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1,000 meters. Our professional team provides technical support and custom specifications are available upon request.
