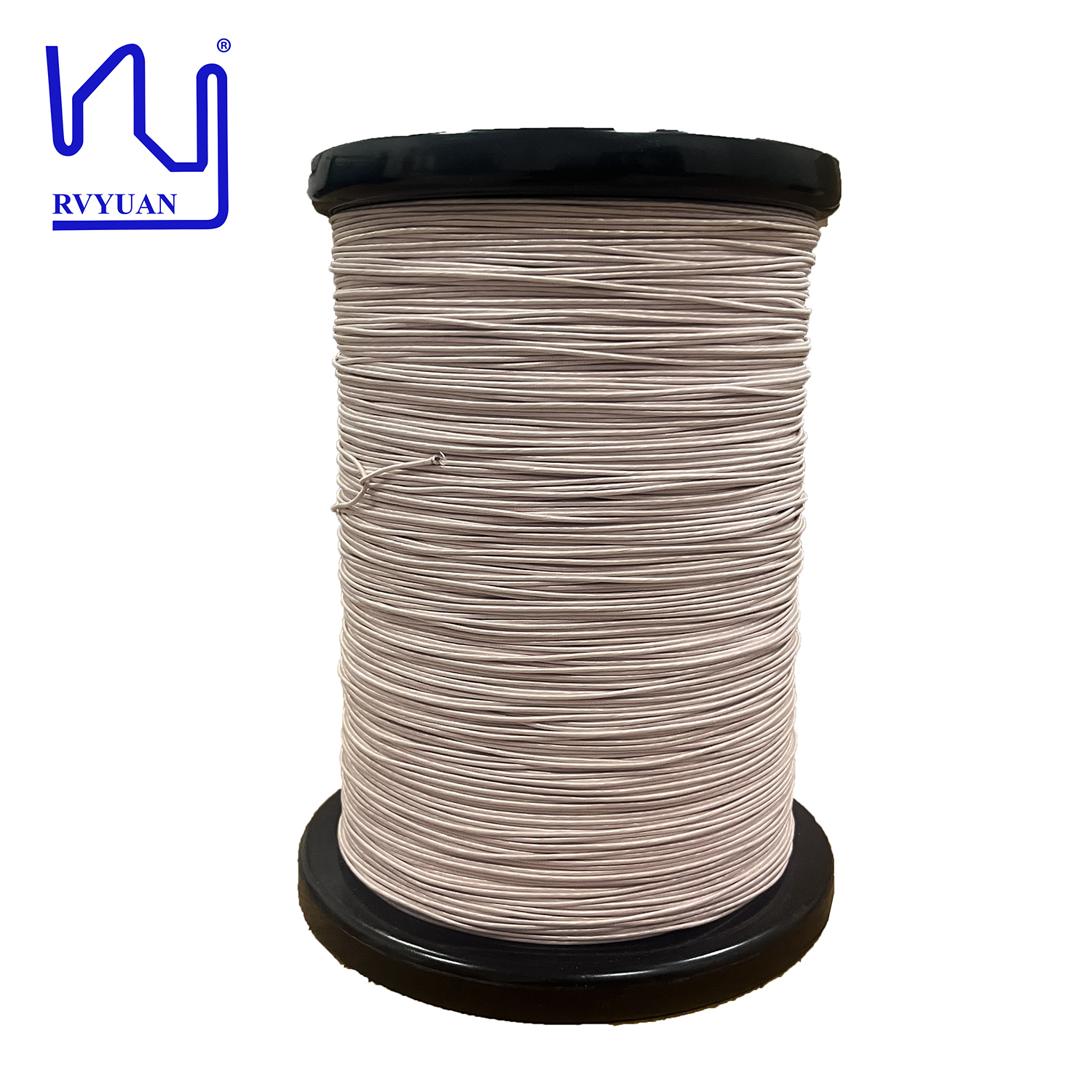

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: RVYUAN
Certificación: ISO9001/ISO14001 /UL/SGS
Número de modelo: USTC
Cantidad de orden mínima: 10 kg
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 2-15 días de trabajo
Condiciones de pago: T/ t/ paypal
Capacidad de la fuente: Satisface tu demanda
Mejor precio Contactar ahora
Información detallada
Diámetro: 0.1 mm Temperatura: 155
Certificación: IEC/NEMA/JIS/RoHS/ISO Conductor: Cobre
Hilos: 100 Voltaje de desglose: Min.1100
Material de cubierta: nylon Nombre del producto: Alambre Litz de cobre cubierto de seda esmaltado, alambre de alta frecuencia y alta temperatura USTC
Palabra clave: Alambre Litz de cobre cubierto de seda esmaltado, alambre de alta frecuencia y alta temperatura USTC
Resaltar:

high temperature enameled litz wire

,

silk covered copper litz wire

,

high frequency ustc litz wire

Descripción de producto

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
Nylon served Litz wire offers advantages like enhanced mechanical protection and durability, improved insulation, and increased efficiency in high-frequency applications. The nylon serving provides a tough outer layer that protects against abrasion and mechanical stress, while the Litz construction of individual, insulated strands minimizes AC resistance. This combination makes the wire suitable for demanding environments and applications like motors, transformers, and high-frequency circuits.
Mechanical and Physical Advantages
  • The nylon serving provides strong mechanical protection against abrasion, bending, and stretching, increasing the wire's lifespan, especially in complex or demanding environments.
  • Mechanical strength: The nylon overcoat improves the wire's ability to withstand mechanical stress, making it suitable for high-speed winding applications.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!
