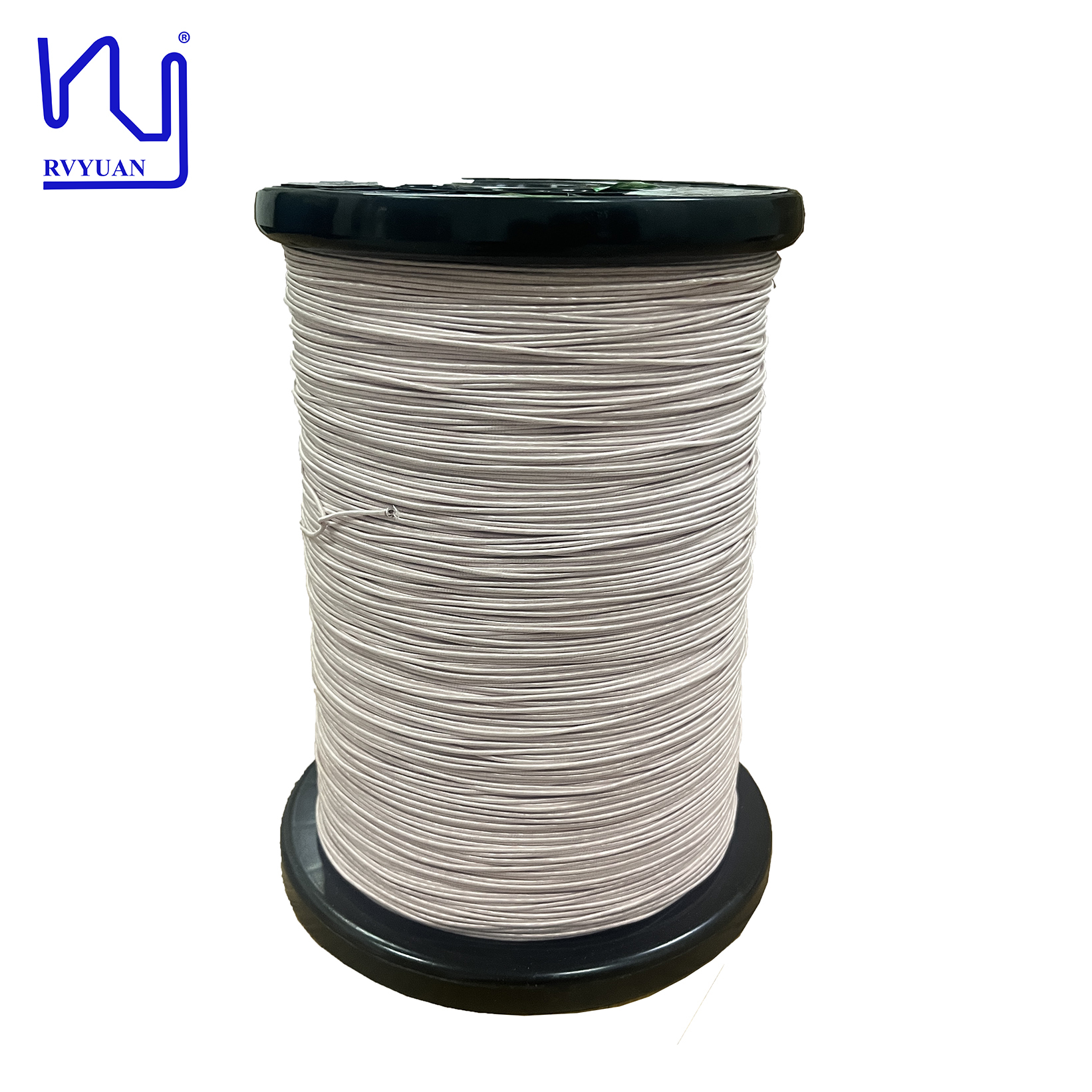

Name: Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTC
Price: 24.06 USD
Availability: InStock

Información detallada

Diámetro:	0.1 mm	Temperatura:	155
Certificación:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Cobre
Hilos:	100	Voltaje de desglose:	Min.1100
Material de cubierta:	nylon	Nombre del producto:	Cable Litz cubierto de seda trenzado personalizado USTC UEW de 0,1 mm para bobinas de carga inalámbr
Palabra clave:	Cable Litz cubierto de seda trenzado personalizado USTC UEW de 0,1 mm para bobinas de carga inalámbr
Resaltar:	0.1mm silk covered Litz wire , customized USTC Litz wire for wireless charging , stranded silk Litz wire with warranty

Descripción de producto

Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils

Silk-covered Litz wire is used in applications that require high efficiency and low loss, particularly at high frequencies. Common applications include windings for transformers, motors, and high-frequency inductors, as well as in high-power lighting, video, and audio equipment. The silk covering adds insulation and durability while the Litz construction minimizes AC resistance.

Applications

Transformers and Motors: Used for windings in transformers and motors where efficiency is critical.
High-frequency electronics: Suitable for high-frequency applications such as RF transformers and transducers.
Inductors: Used in high-frequency and antenna inductors.
Audio and Video Equipment: Utilized in high-fidelity audio systems and other video equipment.
Industrial and Scientific Equipment: Found in high-power lighting systems, ultrasonic equipment, and inductive heating systems.
Automotive and Aerospace: Used in electronic components for these industries.

Why It's Used

Efficiency: The Litz construction minimizes skin and proximity effects, reducing resistance and energy loss.
Insulation: The silk cover provides an extra layer of electrical insulation and mechanical protection.
Performance: It improves the "Q" value and overall performance in high-frequency circuits.

Product Specifications

Item	Standard	Test value
Single wire outer diameter(mm)	0.107-0.125	0.110 \| 0.114
Conductor diameter(mm)	0.100±0.003	0.098 \| 0.10
Overall dimension(mm)	Max.1.43	1.3 \| 1.38
Pitch(mm)	27±5	√ \| √
Resistance(Ω/m at20℃)	Max.0.02381	0.0214 \| 0.0215
Pinhole	<45 faults/6m	8 \| 10
Breakdown voltage	>1100V	3300 \| 3400

Please send inquiries directly to request more information or quote!

etiqueta:

Lugar de origen:	PORCELANA
Nombre de la marca:	RVYUAN
Certificación:	ISO9001/ISO14001 /UL/SGS
Número de modelo:	USTC

Cantidad de orden mínima:	10 kg
Precio:	negotiable
Detalles de empaquetado:	Carrete con cartón
Tiempo de entrega:	2-15 días de trabajo
Condiciones de pago:	T/ t/ paypal
Capacidad de la fuente:	Satisface tu demanda
