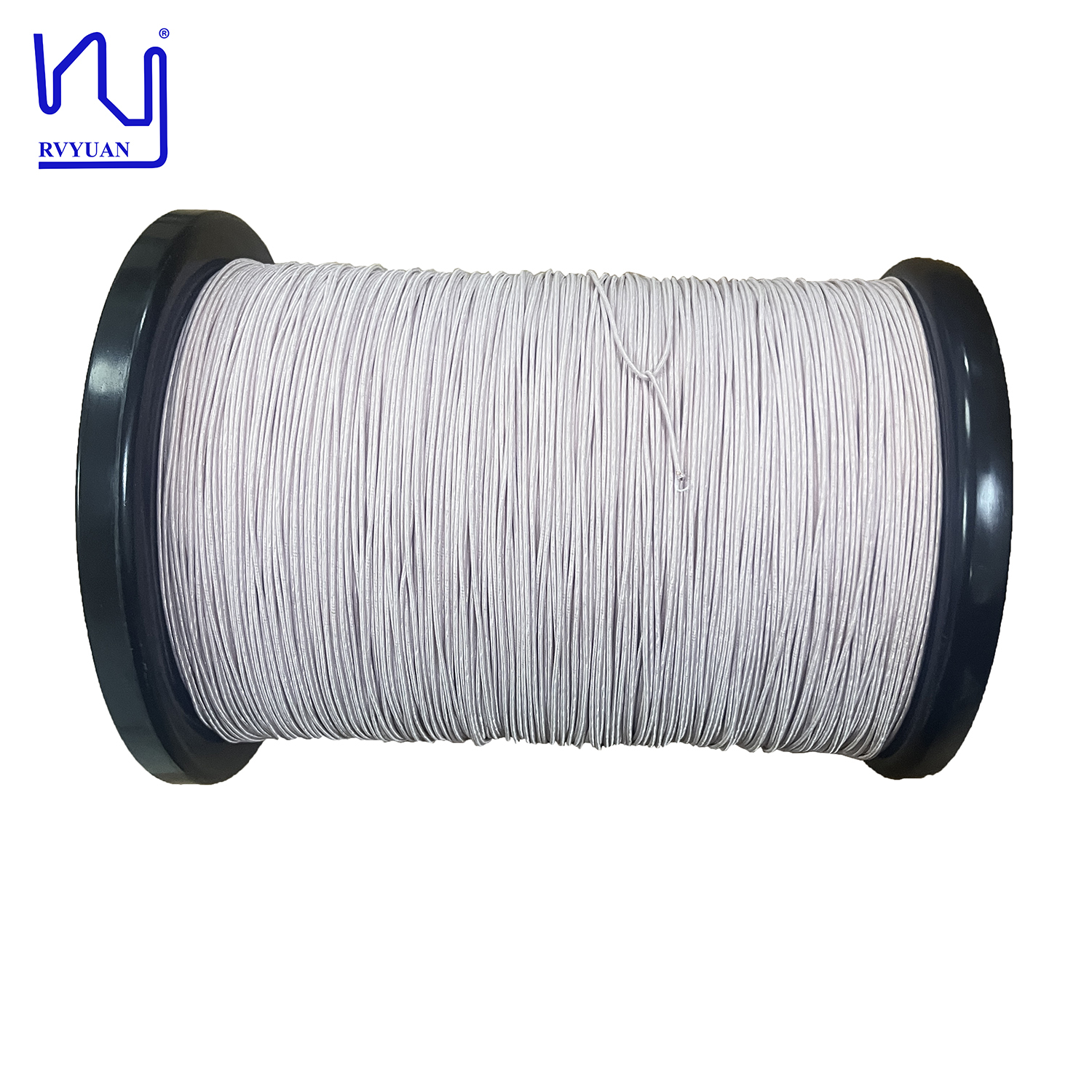

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: RVYUAN
Certificación: ISO9001/ISO14001 /UL/SGS
Número de modelo: USTC
Cantidad de orden mínima: 10 kg
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 2-15 días de trabajo
Condiciones de pago: T/ t/ paypal
Capacidad de la fuente: Satisface tu demanda
Mejor precio Contactar ahora
Información detallada
Diámetro: 0.1 mm Temperatura: 155
Certificación: IEC/NEMA/JIS/RoHS/ISO Conductor: Cobre
Hilos: 100 Voltaje de desglose: Min.1100
Material de cubierta: nylon Nombre del producto: 0,03 mm 0,05 mm 0,08 mm 0,1 mm 0,2 mm Alambre de alta frecuencia Alambre magnético esmaltado Alambre
Palabra clave: 0,03 mm 0,05 mm 0,08 mm 0,1 mm 0,2 mm Alambre de alta frecuencia Alambre magnético esmaltado Alambre
Resaltar:

enameled magnet wire silk covered

,

high frequency litz wire

,

copper litz wire with warranty

Descripción de producto

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
We can produce polyurethane-enameled copper wire with single strand diameters ranging from 0.03 mm to 0.5 mm and can fully customize it to your specific needs. In addition to this configuration, we can also produce single-strand conductors with up to 12,700 strands, depending on the appropriate strand size.
If you have specific design and customization requirements, please let us know and our technical team will be happy to assist you. The minimum order quantity for this type of conductor is typically 20 kg, but we also offer custom orders in smaller quantities to accommodate various project sizes.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!

etiqueta:

uno mismo que enlaza el alambre trenzado fino,

alambre trenzado fino esmaltado,

alambre trenzado fino de 40 AWG
