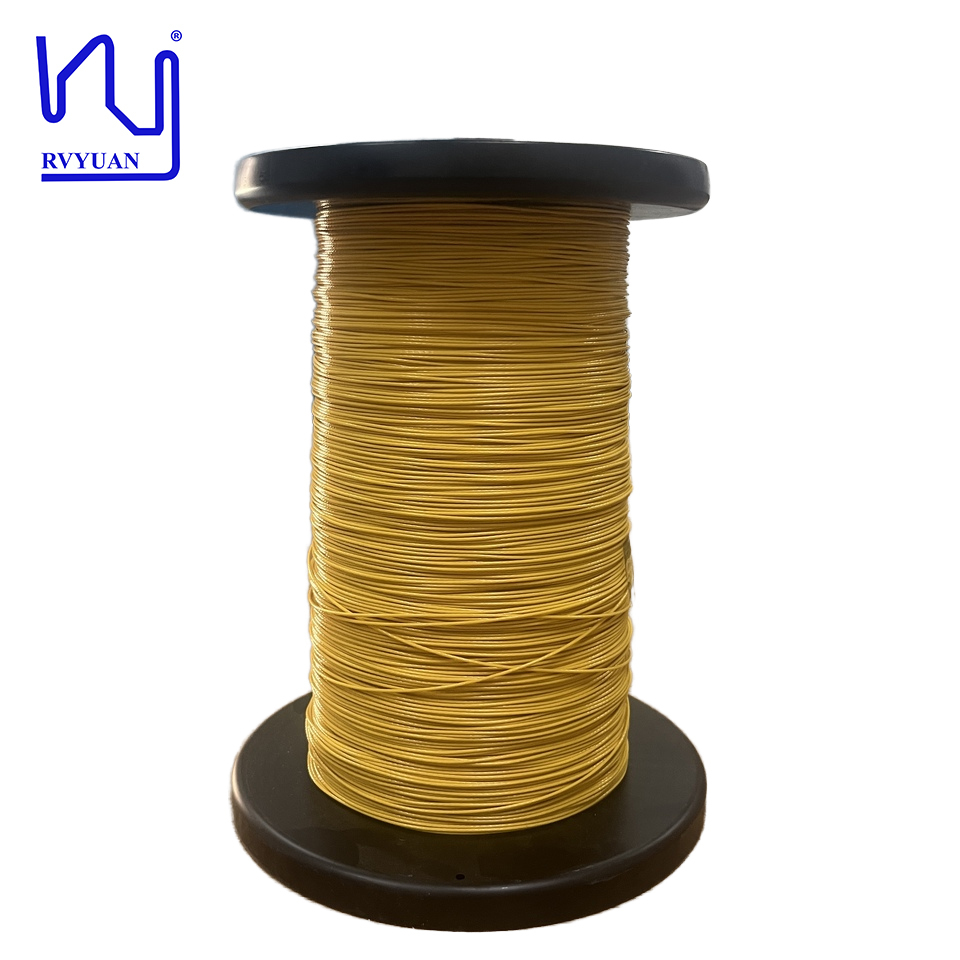

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

Informacion basica

Lugar de origen:	PORCELANA
Nombre de la marca:	RVYUAN
Certificación:	UL/ISO9001/ISO14001/RoHS/Reach
Número de modelo:	0.27m m

Cantidad de orden mínima:	1000 metros
Precio:	negotiable
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	7 días
Condiciones de pago:	T/t/paypal
Capacidad de la fuente:	1ton/month

Mejor precio Contactar ahora

Información detallada

Nombre del producto:	FTIW-F Clase 155 0.27mmx7 Aislamiento ETFE extruido alambre litz para transformador de alta frecuenc	Calificación térmica:	155
Diámetro de un solo alambre:	0.27m m	Material conductor:	Cobre
No. de hilos:	7	Inyección:	ETFE
Resaltar:	ETFE insulated Litz wire , high frequency transformer wire , 0.27mmx7 extruded Litz wire

Descripción de producto

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

ETFE insulation Litz wire is a high-performance cable featuring a bundle of individually insulated strands twisted together and coated with an extruded layer of Ethylene Tetrafluoroethylene (ETFE) insulation. This combination offers superior performance in demanding applications by minimizing skin-effect losses in high-frequency environments, enhanced electrical properties for high-voltage use, and excellent thermal, mechanical, and chemical resistance due to the strong ETFE fluoropolymer.

Technical Specifications

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288	0.287	0.287
Min. insulation thickness	/Mm(min)	0.019	0.018	0.019
Pitch	S12±2	ok	ok	ok
Single wire Diameter	0.27±0.004MM	0.269	0.269	0.268
Overall dimension	1.06-1.2mm(Max)	1.078	1.088	1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82	44.73	44.81
Breakdown voltage	Min. 6KV(min)	15	14.5	14.9
Solder ability	450℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
