Custom litz wire 2-13000 Strands Copper Stranding Wire for Transformer

Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: RVYUAN
Certificación: ISO9001/ISO14001 /UL/SGS
Número de modelo: USTC
Cantidad de orden mínima: 10 kg
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 2-15 días de trabajo
Condiciones de pago: T/ t/ paypal
Capacidad de la fuente: Satisface tu demanda
Información detallada
Diámetro: 0.071 mm Temperatura: 155
Certificación: IEC/NEMA/JIS/RoHS/ISO Conductor: Cobre
Hilos: 250 Voltaje de desglose: 1300
Aislamiento: Uw Nombre del producto: Cable litz personalizado 2-13000 hilos alambre de hilos de cobre para transformador
Palabra clave: Cable litz personalizado 2-13000 hilos alambre de hilos de cobre para transformador
Resaltar:

custom litz wire for transformer

,

copper stranding litz wire

,

13000 strands litz wire


Descripción de producto

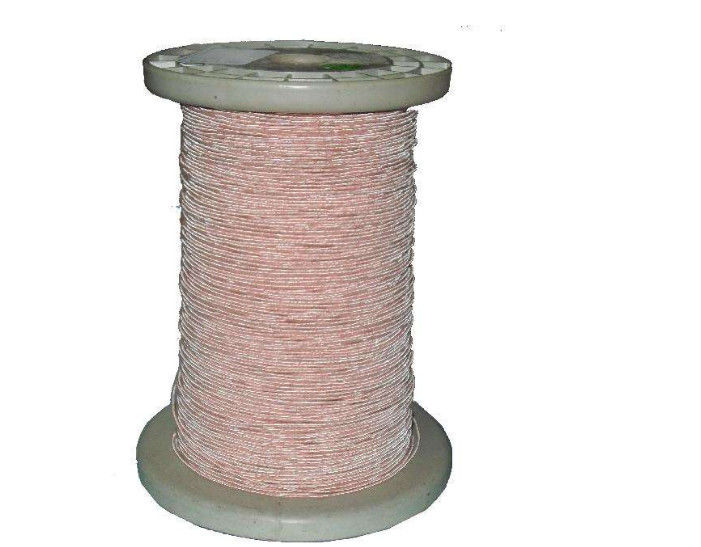

Custom Litz Wire 2-13000 Strands Copper Stranding Wire for Transformer

Our company offers a variety of custom litz wire solutions to meet your specific needs. We offer single wire sizes ranging from 0.025 mm to 0.5 mm, with strand counts ranging from single to 13,000 strands.

In addition to stranded wire, we also offer various types of stranded wire with cover, including:

  • Nylon served litz wire
  • Taped litz wire
  • Flat nylon severed and taped litz wire

Our products are designed to meet the unique needs of your application, ensuring optimal performance and efficiency. With an emphasis on quality and customization, we work closely with our customers to provide litz wire solutions that perfectly fit their systems.

Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250

Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
