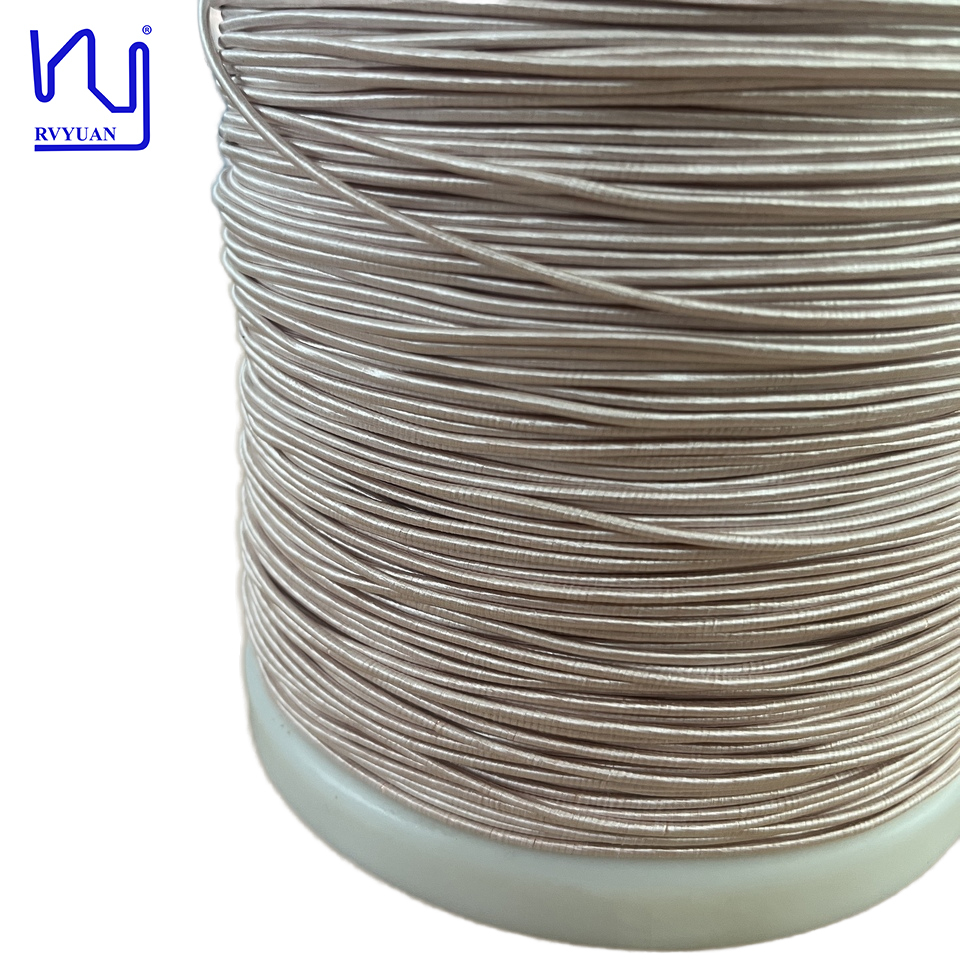

USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire

Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: RVYUAN
Certificación: ISO9001/ISO14001 /UL/SGS
Número de modelo: USTC
Cantidad de orden mínima: 10 kg
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 2-15 días de trabajo
Condiciones de pago: T/ t/ paypal
Capacidad de la fuente: Satisface tu demanda
Información detallada
Diámetro: 0.071 mm Temperatura: 155
Certificación: IEC/NEMA/JIS/RoHS/ISO Conductor: Cobre
Hilos: 250 Voltaje de desglose: 1300
Aislamiento: Uw Nombre del producto: Alambre USTC litz 0.071 mmx250 alambre litz cubierto de seda natural
Palabra clave: Alambre USTC litz 0.071 mmx250 alambre litz cubierto de seda natural
Resaltar:

natural silk covered litz wire

,

0.071mm litz wire with silk

,

ustc litz wire 250 strands


Descripción de producto

USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire
The unique construction of silk covered litz wire provides excellent conductivity and effectively reduces skin effect, making it ideal for high-frequency applications. In transformer winding, the wire's flexibility and durability ensure it withstands the rigors of continuous operation while maintaining optimal performance. Furthermore, the natural silk covering provides excellent insulation, further enhancing the wire's performance in harsh environments. Whether you're designing a new transformer or developing a high-fidelity audio system, the silk covered litz wire delivers exceptional performance.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire 0
