Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire

Informacion basica
Lugar de origen: China
Nombre de la marca: RVYUAN
Certificación: ISO9001/ISO14001 /UL/SGS
Número de modelo: USTC
Cantidad de orden mínima: 10kg
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 2 a 15 días hábiles
Condiciones de pago: Negociación
Capacidad de la fuente: Satisfacer su demanda
Información detallada
Diameter: 0.1mm Temperature: 155/180
Certificación: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown voltage: 1300 Insulation: UEW
Product name: High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz WireRed Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire Key word: Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire
Resaltar:

0.1mmx200 Stranded Litz Wire

,

Silk Covered Litz Wire

,

Polyester Served Copper Stranded Wire


Descripción de producto

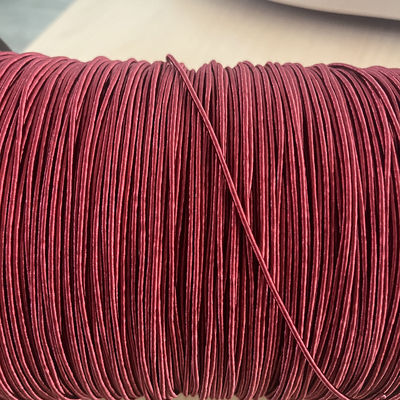

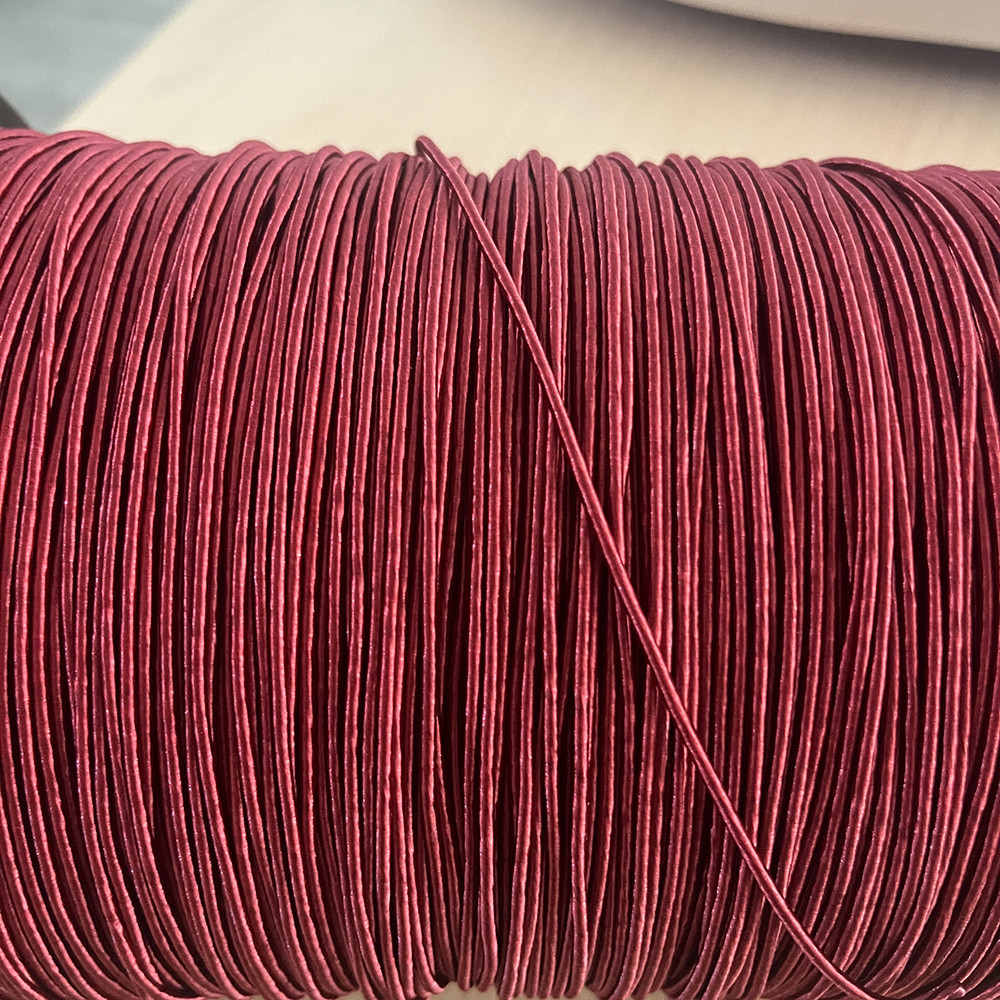

Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire



Our Litz wires are available in a variety of sizes, with single wire options ranging from 0.03mm to 0.5mm enameled copper wires. We primarily use solderable polyurethane enameled copper wires, which not only improves the durability of the wires but also ensures easy soldering during assembly. This feature is particularly beneficial for manufacturers and engineers who need to achieve reliable connections in their designs. Our Litz wires have excellent temperature resistance and are available in 155 and 180 degrees, making them suitable for a variety of environments and applications.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000



Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire 0Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire 1
