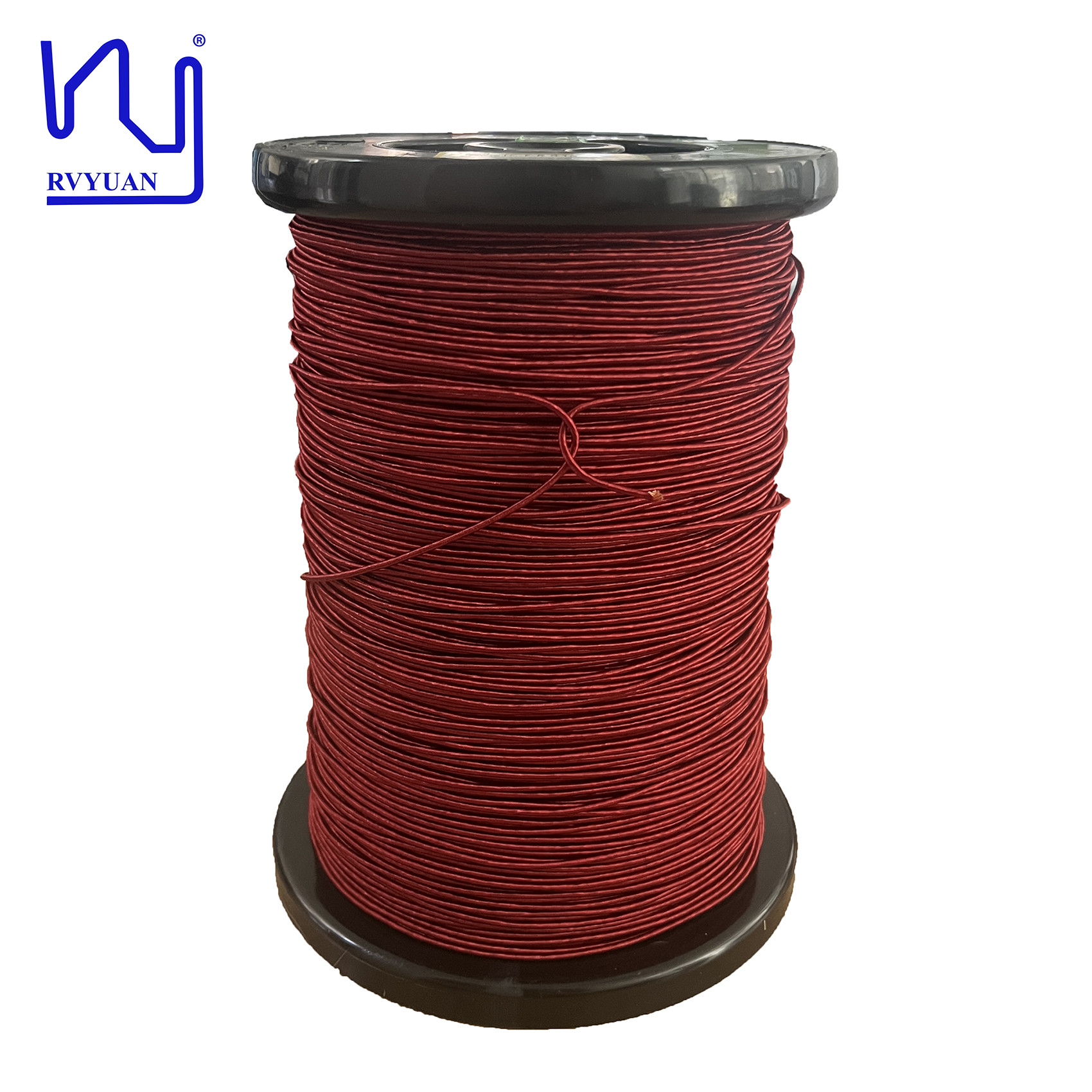

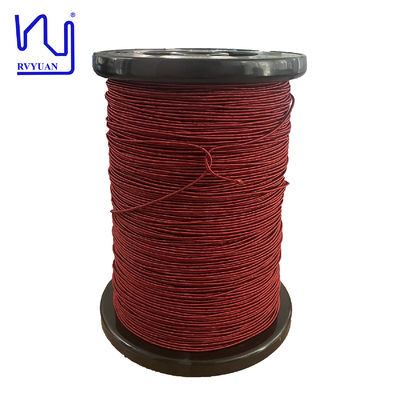

38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor

Informacion basica

Lugar de origen:	China
Nombre de la marca:	RVYUAN
Certificación:	ISO9001/ISO14001 /UL/SGS
Número de modelo:	USTC

Cantidad de orden mínima:	10kg
Precio:	negotiable
Detalles de empaquetado:	Carrete con cartón
Tiempo de entrega:	2 a 15 días hábiles
Condiciones de pago:	Negociación
Capacidad de la fuente:	Satisfacer su demanda

Mejor precio Contactar ahora

Información detallada

Diameter:	0.1mm	Temperature:	155/180
Certificación:	IEC/NEMA/JIS/RoHS/ISO	AWG SIZE:	38
Conductor:	Copper	Strands:	200
Breakdown voltage:	1300	Insulation:	UEW
Product name:	High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire	Key word:	High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire
Resaltar:	Pure Copper Twisted Litz Wire , 0.1mm Yarn Wrapped Litz Wire , Durable Twisted Litz Wire

Descripción de producto

High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire

What makes our silk covered litz wire unique is its customization options. We understand that different projects may require specific color schemes or aesthetic preferences. That’s why we offer a wide range of colored polyester yarns, allowing you to customize the wire to meet your unique needs. Whether you need a specific color to match your design or create a unique look for branding purposes, we have a high-performance wire that’s designed just for you.

Outgoing test of stranded wire	Spec: 0.1x200	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.107-0.125	0.110-0.114
Conductor diameter(mm)	0.10±0.003	0.0980-0.10
Overall diameter (mm)	Max.1.98	1.75-1.85
Pitch(mm)	29±5	√
Max resistance (Ω/m at20℃)	Max. 0.01191	0.01088
Breakdown voltage Mini (V)	1100	3000
