2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire

Informacion basica
Lugar de origen: China
Nombre de la marca: RVYUAN
Certificación: ISO9001/ISO14001 /UL/SGS
Número de modelo: USTC
Cantidad de orden mínima: 10kg
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 2 a 15 días hábiles
Condiciones de pago: Negociación
Capacidad de la fuente: Satisfacer su demanda
Información detallada
Diameter: 0.1mm Temperature: 155/180
Certificación: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown voltage: 1300 Insulation: UEW
Product name: 2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire Key word: 2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire
Resaltar:

0.1mm Stranded Wire

,

2USTC-F Copper Litz Wire

,

Red Silk Litz Wire


Descripción de producto

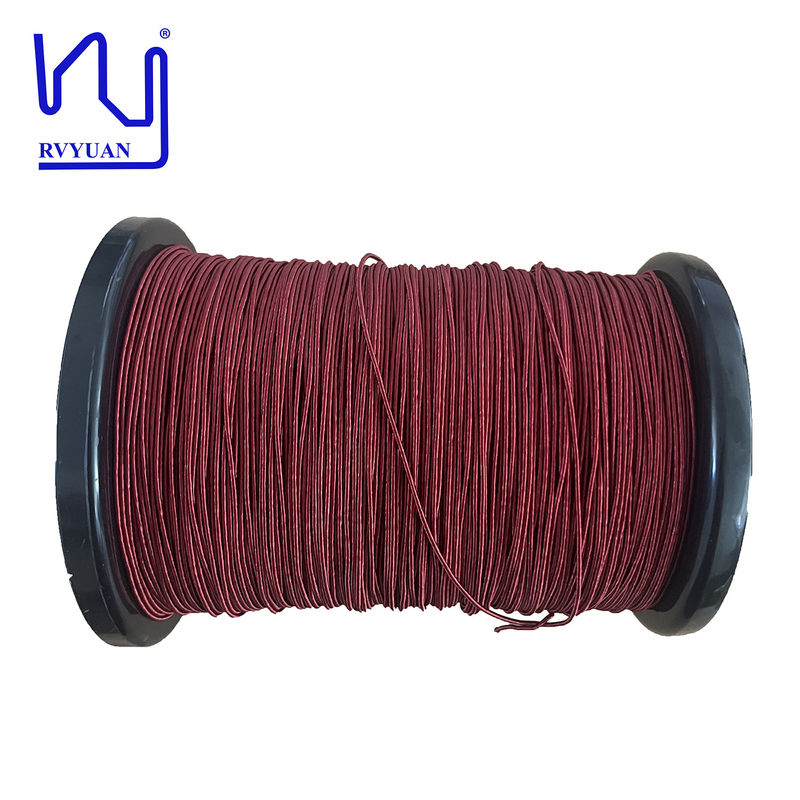

2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire



Silk covered Litz wire is designed to minimize eddy current losses, which are critical in transformer winding. Silk covered Litz wire is an indispensable component for engineers and manufacturers seeking to improve transformer performance and reliability. The combination of Silk covered Litz wire and Litz wire technology not only improves electrical performance, but also helps extend the life of the winding, making it a smart investment for any project.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000



2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire 02USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire 1
