2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire

Informacion basica

Lugar de origen:	China.
Nombre de la marca:	RVYUAN
Certificación:	ISO9001/ISO14001 /UL/SGS
Número de modelo:	USTC

Cantidad de orden mínima:	10kg
Precio:	negotiable
Detalles de empaquetado:	Carrete con cartón
Tiempo de entrega:	2 a 15 días hábiles
Condiciones de pago:	Negociación
Capacidad de la fuente:	Satisfacer su demanda

Mejor precio Contactar ahora

Información detallada

Diameter:	0.1mm	Temperature:	155/180
Certificación:	IEC/NEMA/JIS/RoHS/ISO	AWG SIZE:	38
Conductor:	Copper	Strands:	200
Breakdown voltage:	1300	Insulation:	UEW
Product name:	2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire	Key word:	2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire
Resaltar:	Red Polyester Covered Litz Wire , 200 Strands Polyester Covered Litz Wire , Polyester Covered 0.1mm Litz Wire

Descripción de producto

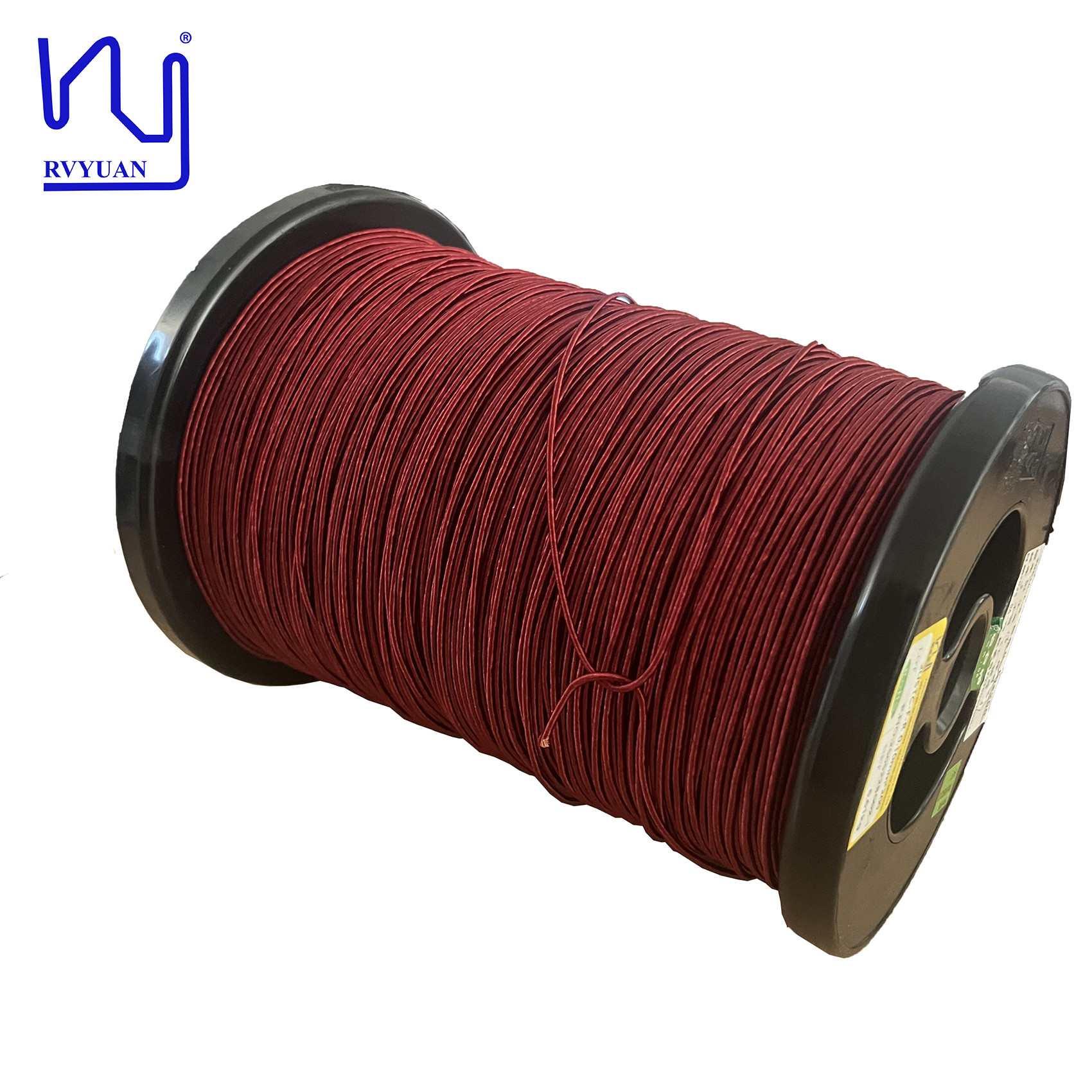

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire

This innovative wire features a unique bright red polyester outer covering that not only enhances aesthetics, but also offers exceptional durability and environmental resistance. Its inner core is carefully twisted with 200 strands of 0.1 mm enameled copper wire to ensure optimal conductivity and performance. Rated to 155 degrees Celsius, this wire is ideal for transformer applications because it can withstand the harsh environment of high frequency operation.

Outgoing test of stranded wire	Spec: 0.1x200	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.107-0.125	0.110-0.114
Conductor diameter(mm)	0.10±0.003	0.0980-0.10
Overall diameter (mm)	Max.1.98	1.75-1.85
Pitch(mm)	29±5	√
Max resistance (Ω/m at20℃)	Max. 0.01191	0.01088
Breakdown voltage Mini (V)	1100	3000

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire 0
