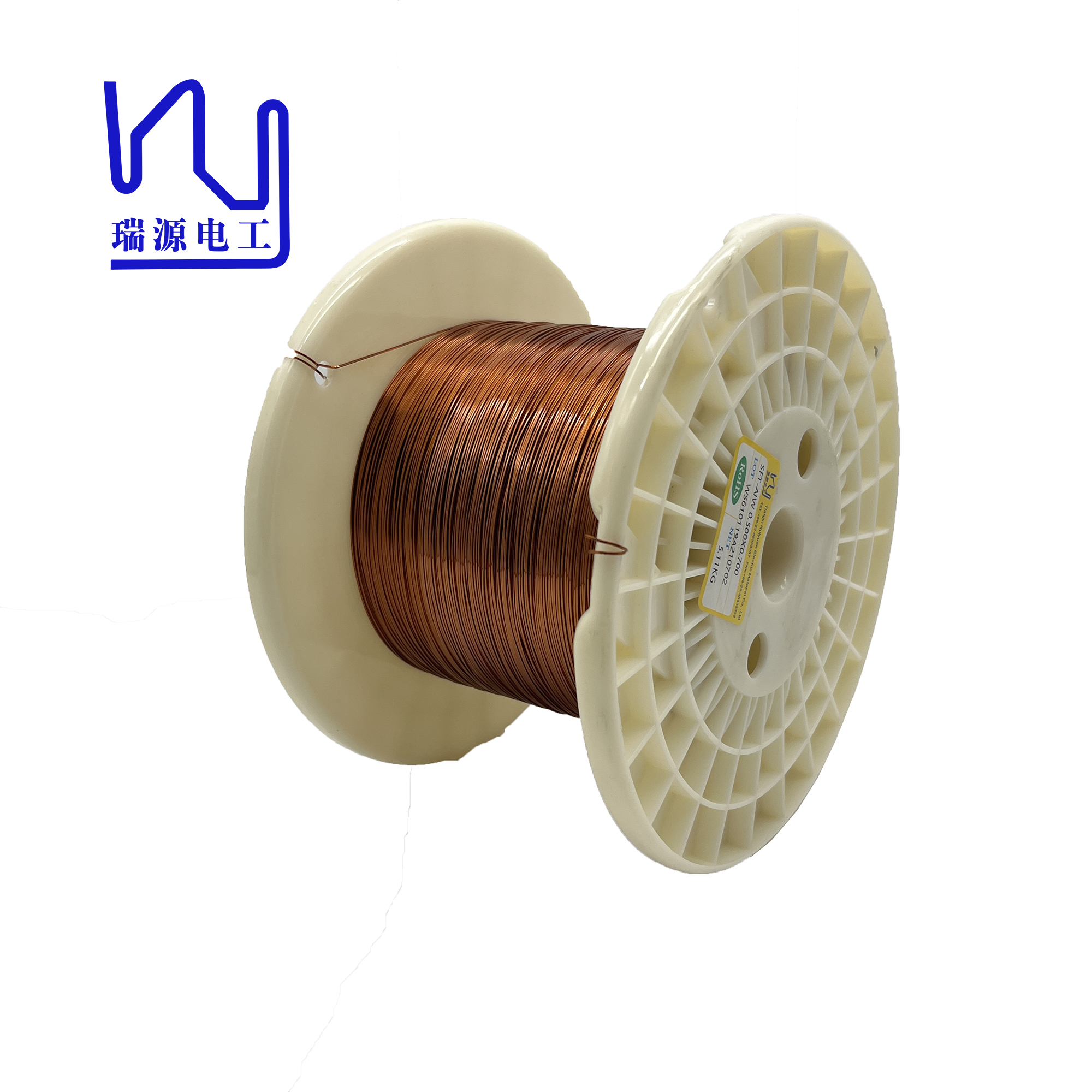

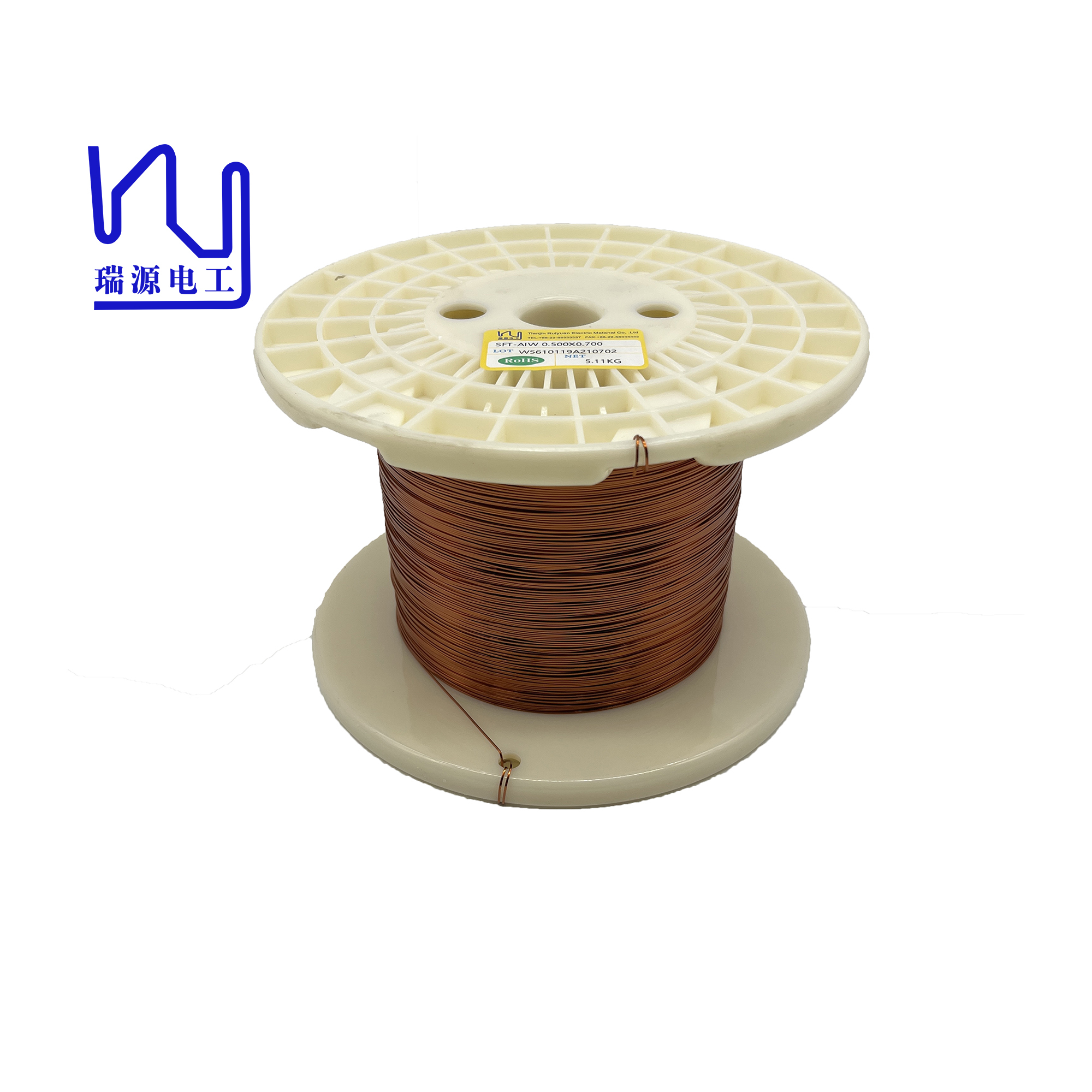

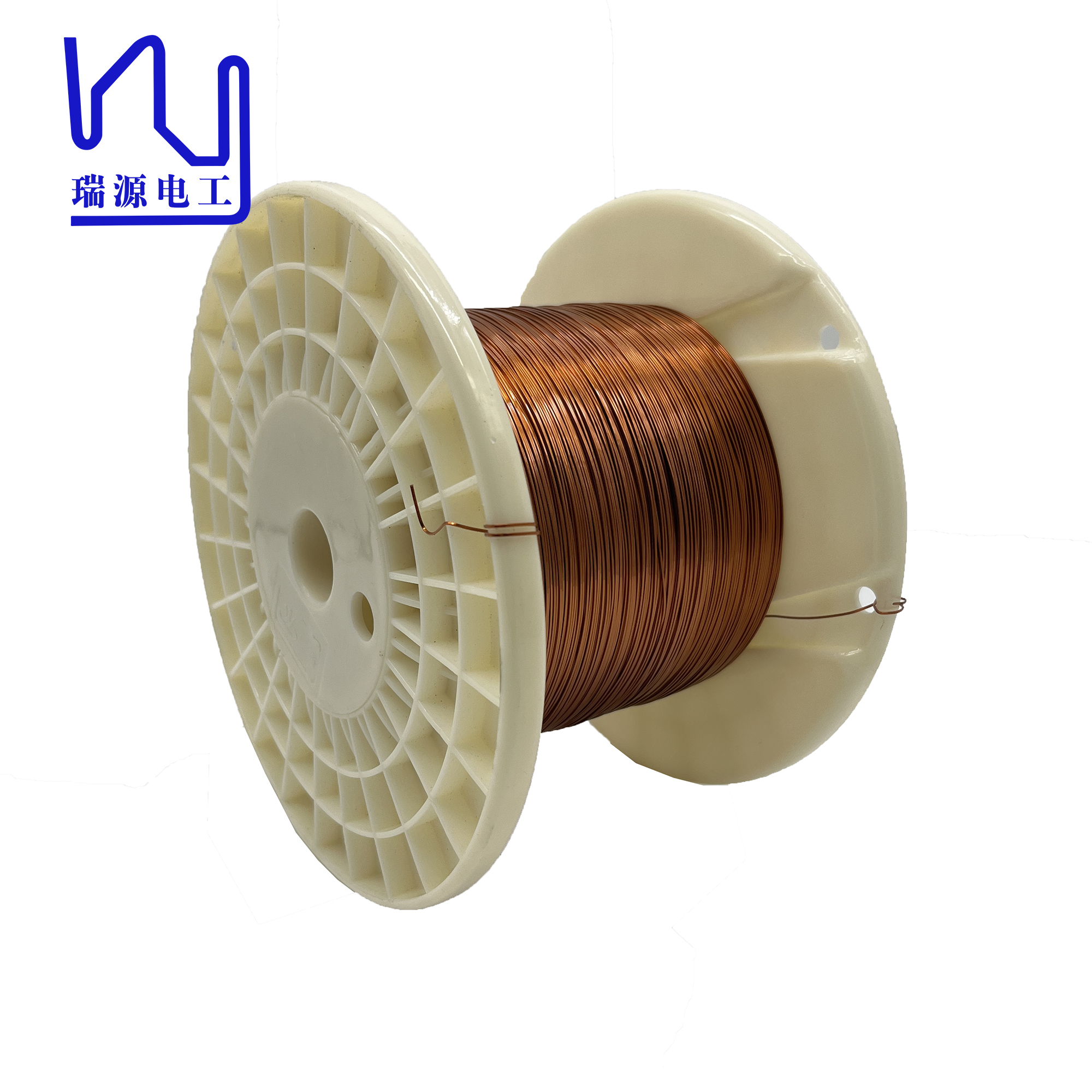

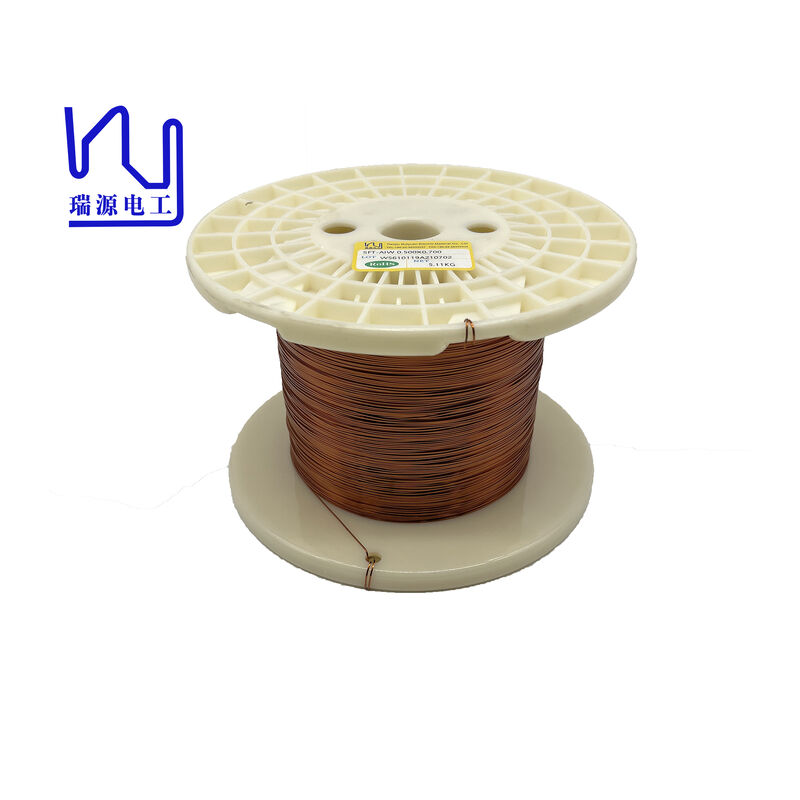

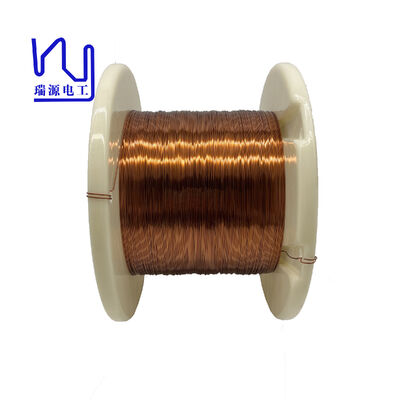

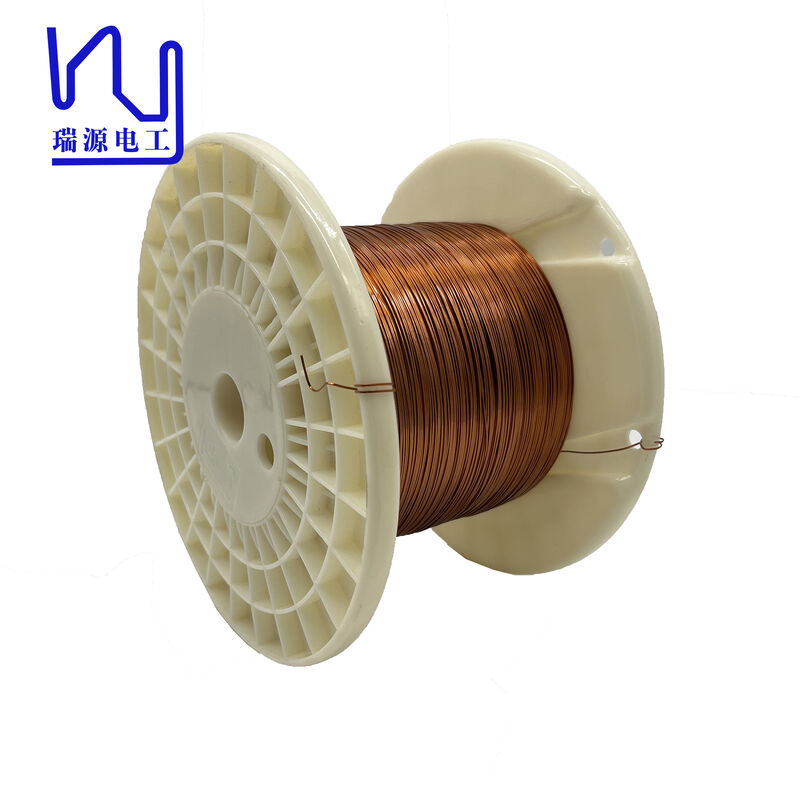

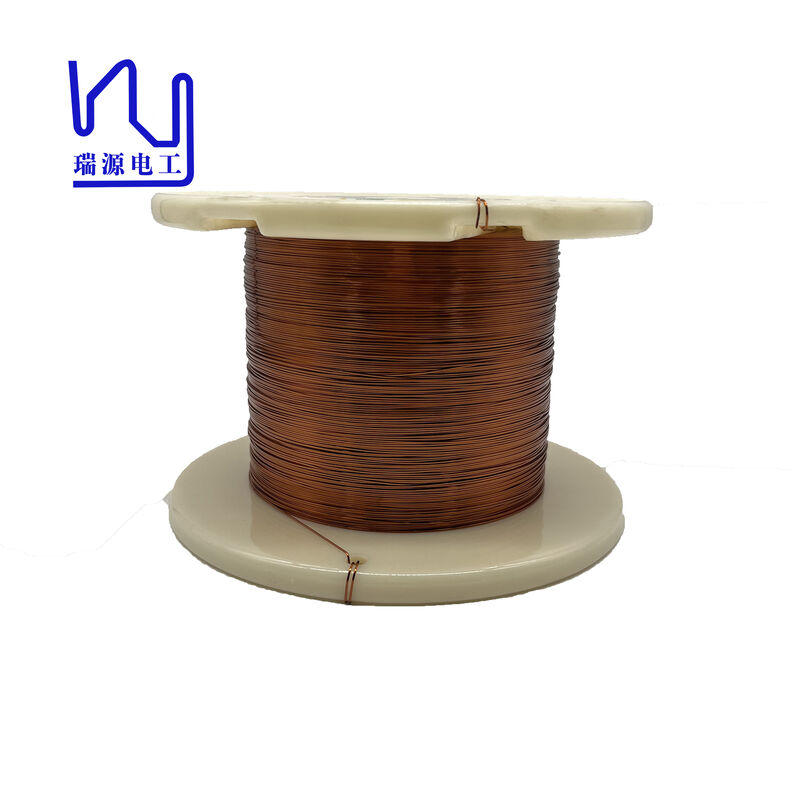

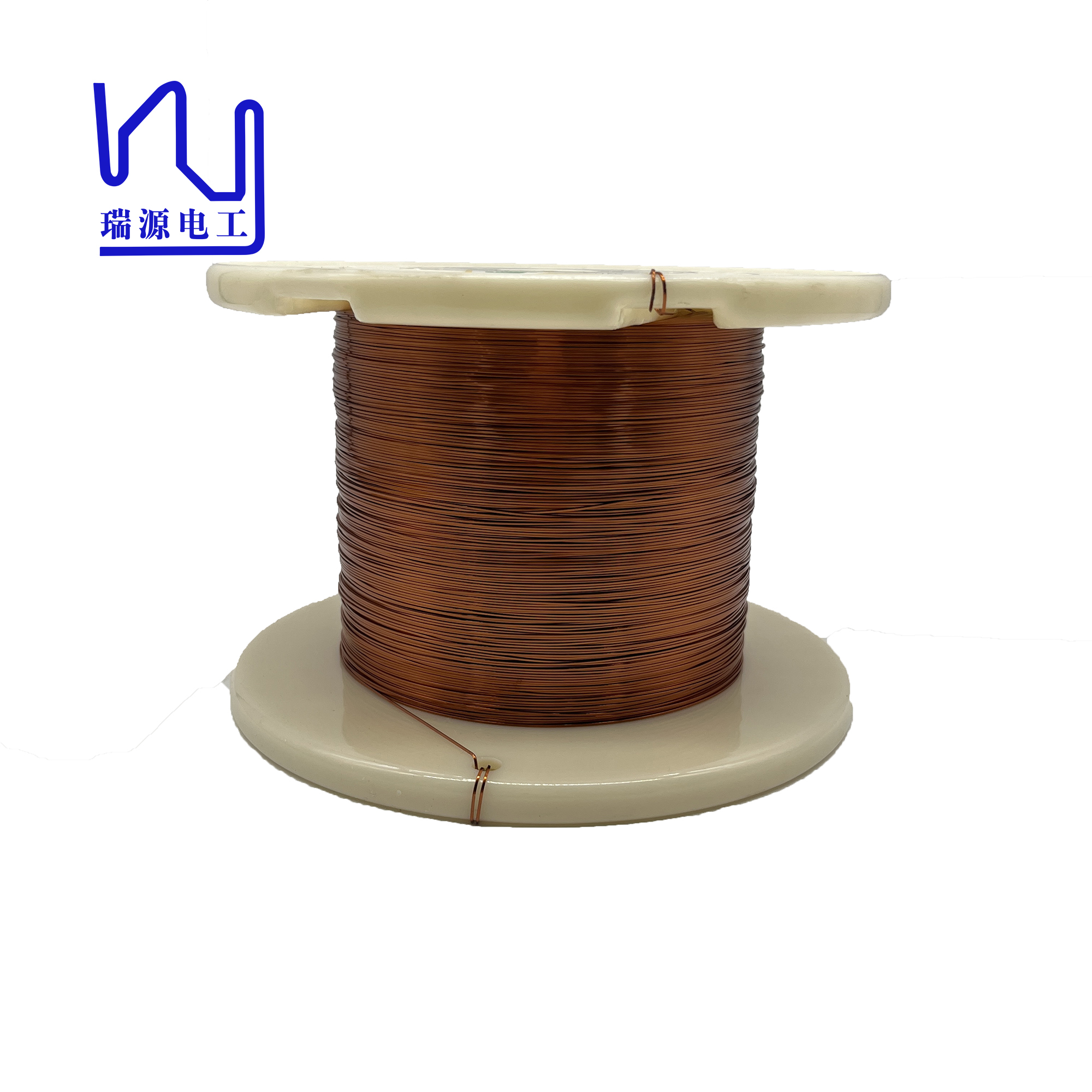

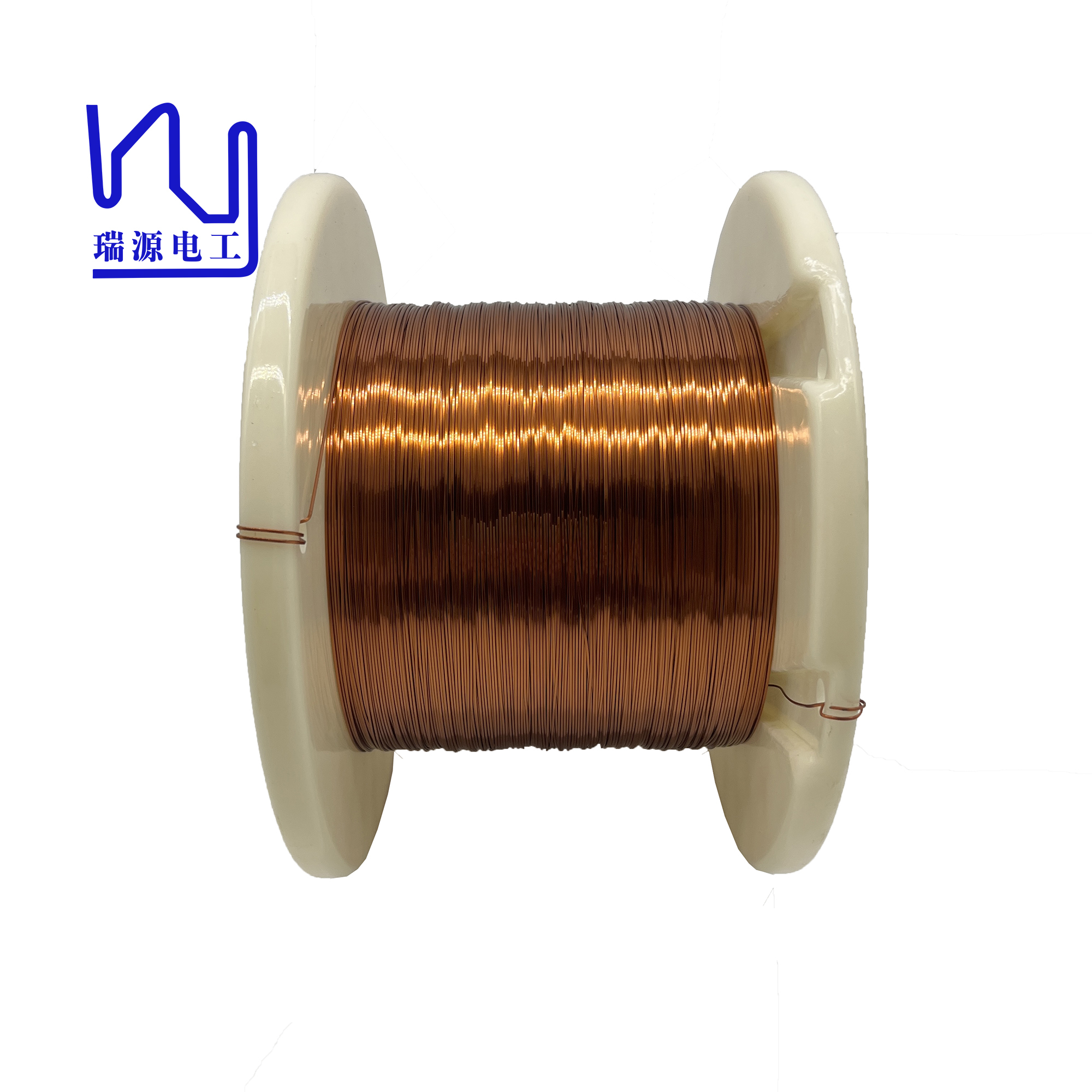

Self-bonding AIW 0.8x0.8mm Enamelled Square Copper Wire

Technical Specifications of AIW 0.8×0.8 mm Self-Bonding Square Enameled Copper Wire Parameter Standard Test Result Conductor Thickness 0.77 mm – 0.83 mm 0.799 mm Conductor Width 0.77 mm – 0.83 mm 0.795 mm Overall Dimension (O.D.) max. 0.874 mm × 0.874 mm 0.840 mm × 0.849 mm Breakdown Voltage min. 0.7 kV 2.88 kV Pinhole 3 holes/m 0 Conductor Resistance max. 37.02 Ω/km at 20℃ 34.12 Ω/km Elongation min. 25% 37% Appearance No scratch, no dirt No scratch, no dirt Flexibility &
