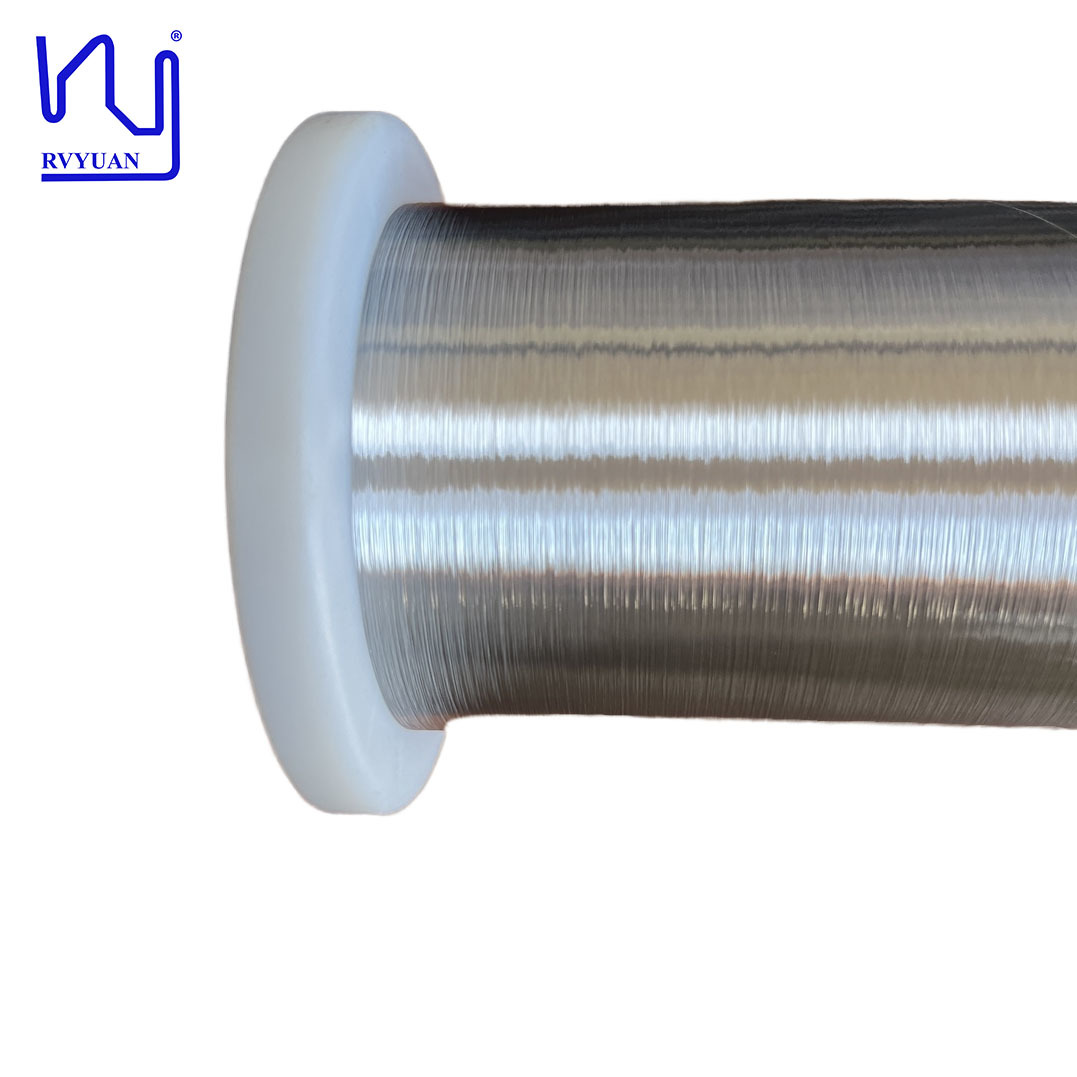

0.1mm Soft Silver Plated Copper Wire SPC Wire For Audio

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	Ruiyuan
Certificación:	UL/ISO9001/ISO14001/RoHS/Reach
Número de modelo:	SPC

Cantidad de orden mínima:	2 kilogramos
Precio:	negotiable
Detalles de empaquetado:	caja de cartón
Tiempo de entrega:	Entre 2 y 15 días
Condiciones de pago:	Negociación
Capacidad de la fuente:	10 toneladas/semana

Mejor precio Contactar ahora

Información detallada

Nombre del producto:	alambre plateado suave del proceso estadístico del alambre de cobre de 0.1m m para el audio	Calificación térmica:	155
Material aislante:	Esmalte	Diámetro:	0,05 mm
Material conductor:	Plata	palabra clave:	alambre plateado suave del proceso estadístico del alambre de cobre de 0.1m m para el audio
Resaltar:	0.1mm soft silver plated copper wire , SPC wire for audio , OCC wire with warranty

Descripción de producto

0.1mm Soft Silver Plated Copper Wire SPC Wire For Audio

Why Silver-Plated Copper Wire is Ideal for Audio Applications

Superior Conductivity: Silver has better conductivity than copper. The silver plating layer effectively reduces resistance in signal transmission, ensuring efficient transmission of audio signals and minimizing signal loss.
High-Frequency Performance: The silver plating performs exceptionally well in high-frequency signal transmission, enabling better transmission of high-frequency audio signals and improving sound clarity and detail.
Oxidation Resistance: The silver plating provides oxidation protection, reducing oxidation at contact points to maintain good electrical connections and ensure long-term stable performance.
Sound Quality Enhancement: Audio enthusiasts and professionals recognize that silver-plated copper wire provides richer audio details and superior sound quality, particularly in high-end audio systems.
Lightweight: Silver-plated copper wire is relatively lightweight, making it easy to use in audio equipment and reducing overall system weight.

Standard Specifications for Monocrystalline Silver

Diameter (mm)	Tensile Strength (Mpa)	Elongation (%)	Conductivity (IACS%)	Purity (%)
	Hard state \| Soft state	Hard state \| Soft state	Hard state \| Soft state
3.0	≥320 \| ≥180	≥0.5 \| ≥25	≥104 \| ≥105	≥99.995
2.05	≥330 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
1.29	≥350 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
0.102	≥360 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995

In conclusion, silver-plated copper wire is an ideal choice for high-end audio cables due to its excellent conductivity, high-frequency performance, and oxidation resistance.

etiqueta:

Diameter (mm)	Tensile Strength (Mpa)	Elongation (%)	Conductivity (IACS%)	Purity (%)
	Hard state \| Soft state	Hard state \| Soft state	Hard state \| Soft state
3.0	≥320 \| ≥180	≥0.5 \| ≥25	≥104 \| ≥105	≥99.995
2.05	≥330 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
1.29	≥350 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
0.102	≥360 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
