| Lugar de origen: | Porcelana |
|---|---|
| Nombre de la marca: | RVYUAN |
| Certificación: | ISO9001/ISO14001 /UL/SGS |
| Número de modelo: | USTC |
| Cantidad de orden mínima: | 10 kg |
| Precio: | negotiable |
| Detalles de empaquetado: | Carrete con cartón |
| Tiempo de entrega: | 2-15 días de trabajo |
| Condiciones de pago: | T/ t/ paypal |
| Capacidad de la fuente: | Satisface tu demanda |
| Diámetro: | 0.2 mm | Temperatura: | 155 |
|---|---|---|---|
| Certificación: | IEC/NEMA/JIS/RoHS/ISO | Conductor: | Cobre |
| Hilos: | 40 | Voltaje de desglose: | Mín.1600 |
| Material de la cubierta: | nylon | Nombre del producto: | Alambre Litz cubierto de nailon de 2USTC 0,2 mm, alambre de cobre de 150 hilos |
| palabra clave: | Alambre Litz cubierto de nailon de 2USTC 0,2 mm, alambre de cobre de 150 hilos | ||
| Resaltar: | 0.2mm nylon litz wire,150 strands copper litz wire,ustc nylon covered wire |
||

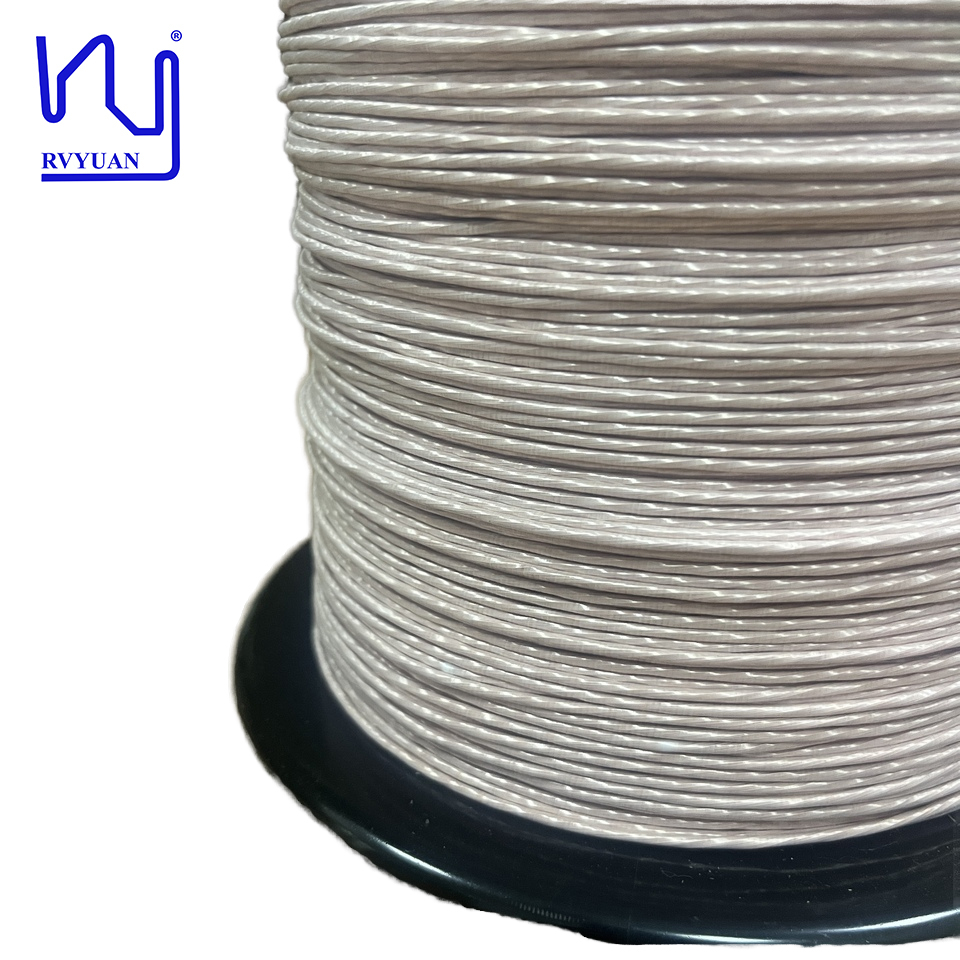

This superior nylon served litz wire features 0.2mm single enameled wire coated with a durable polyurethane, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The litz wire is composed of 40 strands, combining exceptional flexibility and performance.
The outer layer is wrapped in high-quality nylon, which not only enhances durability but also gives it a stylish look. If you prefer other materials, we also offer polyester and silk wrapping options, allowing you to choose the most suitable material according to your needs.
| Item | Technical requests | Test value 1 | Test value 2 |
|---|---|---|---|
| Single Diameter (mm) | 0.216-0.231 | 0.219 | 0.223 |
| Conductor diameter (mm) | 0.2± 0.003 | 0.198 | 0.2 |
| O.D. (mm) | Max.1.8 | 1.57 | 1.70 |
| Resistance Ω/m (20℃) | Max. 0.01443 | 0.01357 | 0.01335 |
| Breakdown Voltage V | 1600 | 3800 | 3600 |
| Pitch mm | 33 ±7 | √ | √ |
| No. of strands | 40 | √ | √ |
