| Lugar de origen: | Porcelana |
|---|---|
| Nombre de la marca: | RVYUAN |
| Certificación: | UL/ISO9001/ISO14001/RoHS/Reach |
| Número de modelo: | AWG 42 |
| Cantidad de orden mínima: | 2 kg |
| Precio: | negotiable |
| Detalles de empaquetado: | Caja de cartón |
| Tiempo de entrega: | 3 dias |
| Condiciones de pago: | T/t/paypal |
| Capacidad de la fuente: | 1ton/month |

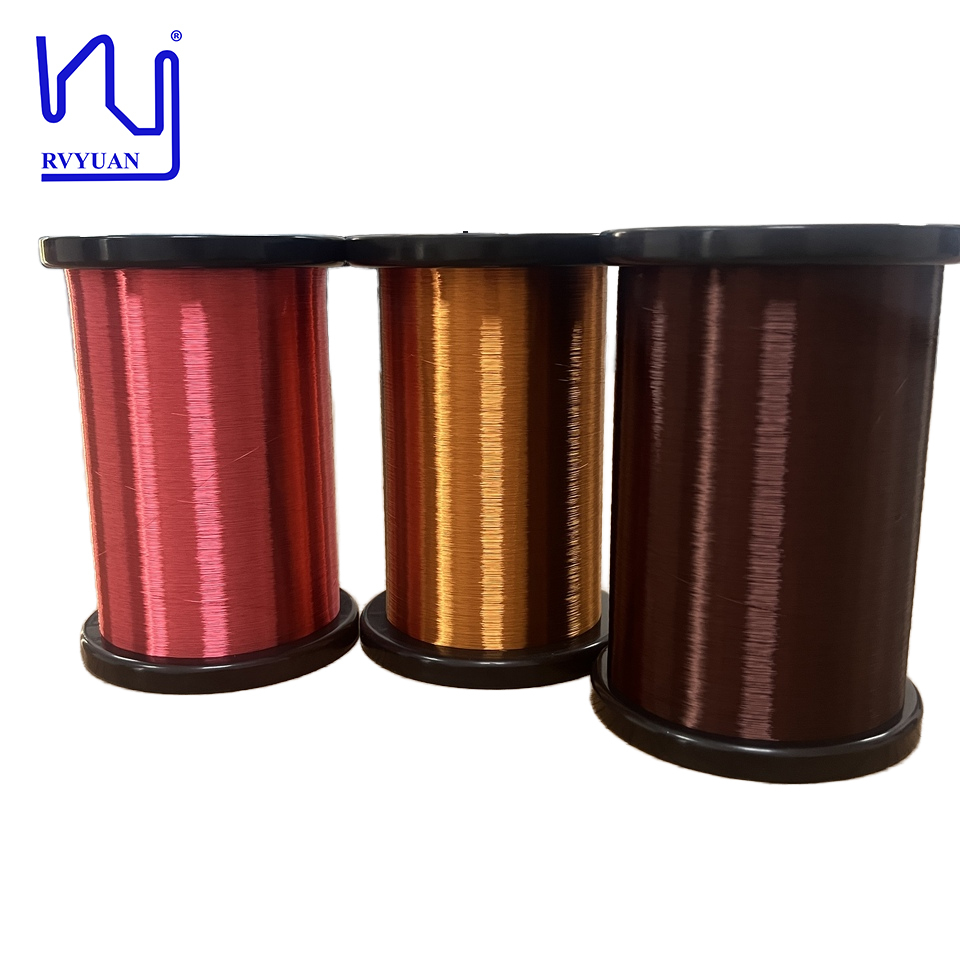

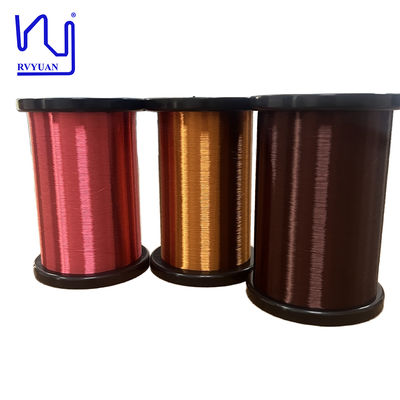

| Nombre del producto: | Alambre de cobre esmaltado Formvar polivinílico/liso/pesado del color rojo 42AWG para la guitarra | Aislamiento: | Poli rojo |
|---|---|---|---|
| Tamaño: | No se puede utilizar. | Solicitud: | Bobinas de las recogidas de la guitarra |
| Cantidad mínima de pedido: | 2 KG (1 rollo) | ||
| Resaltar: | 42AWG enameled copper wire for guitar,red poly-coated guitar pickup wire,heavy formvar guitar pickup wire | ||
We supply some of the world's guitar pickup craftsmen with wire custom made to order.
Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since launched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 300 pickups clients from Europe, America, Asia, etc.
Customized colors and size: only 20kg you can choose your exclusive color
We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the simple reason that they just sound best to our ears.
The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one that's most commonly used. But wire-types measuring from 41 to 46 AWG are all being used in the construction of guitar pickups.
The most professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire. 42awg, 43awg, 44awg. The wire is mainly used in winding guitar pickups, and is a favorite among many custom pickup shops.
| Characteristics | Technical requests | Test results |
|---|---|---|
| Conductor diameter | 0.063mm±0.002 | 0.063mm |
| Overall dimension | ≤0.074mm | 0.071mm |
| Conductor resistance | ≤ 5.900 Ω/m | 5.478 |
| Breakdown voltage | ≥ 400 V | 1768 |
