Taped Litz Wire 0.4mmx120 Round Type

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	Rvyuan
Certificación:	IEC/NEMA/JIS/RoHS/ISO
Número de modelo:	alambre grabado del litz

Cantidad de orden mínima:	20 kg
Precio:	negotiable
Detalles de empaquetado:	Carrete con cartón
Tiempo de entrega:	2-15 días de trabajo
Condiciones de pago:	Negociación
Capacidad de la fuente:	Satisface tu demanda

Mejor precio Contactar ahora

Información detallada

nombre:	Alambre Litz encintado de poliéster-imida 0.4mmx120 Alambre Litz de cobre para transformador	Certificación:	ISO9001/ISO14001/UL/SGS
Diámetro:	0,4 mm	Conductor:	Cobre
Aislamiento:	Película del pi	Temperatura nominal:	180
palabra clave:	Alambre Litz encintado de poliéster-imida 0.4mmx120 Alambre Litz de cobre para transformador	No. de hilos:	120
Resaltar:	0.4mm taped Litz wire , round type Litz wire , 120 strand copper Litz wire

Descripción de producto

Taped Litz Wire 0.4mmx120 Round Type

Taped litz wire offers several advantages, particularly in applications involving high-frequency signals and electromagnetic fields.

Reduced Skin Effect: Minimizes skin effect, improving efficiency at high frequencies.
Lower Proximity Effect: Ensures more uniform current distribution across the wire.
Improved Flexibility: Easier to handle and install in tight spaces or complex assemblies.
Enhanced Thermal Performance: Operates at higher temperatures without degrading performance.
Reduced Electromagnetic Interference (EMI): Suitable for sensitive electronic applications.
Better High-Frequency Performance: Ideal for RF transmission, transformers, and inductors.
Durability and Protection: Tape provides mechanical protection against wear and tear.
Customizability: Available in various configurations to meet specific requirements.

Outgoing Test Specifications

Item	Standard	Test Result
Outer conductor diameter (mm)	0.068-0.081	0.068-0.071
Conductor diameter (mm)	0.06±0.003	0.056-0.060
Overall diameter (mm)	Max.1.86	1.68-1.82
Pitch (mm)	29±5	17
Max resistance (Ω/m at 20℃)	Max. 0.01809	0.01573
Breakdown voltage Mini (V)	6000	13700
NO. Of strands	385	77x5
Tape overlap %	Min.50	53

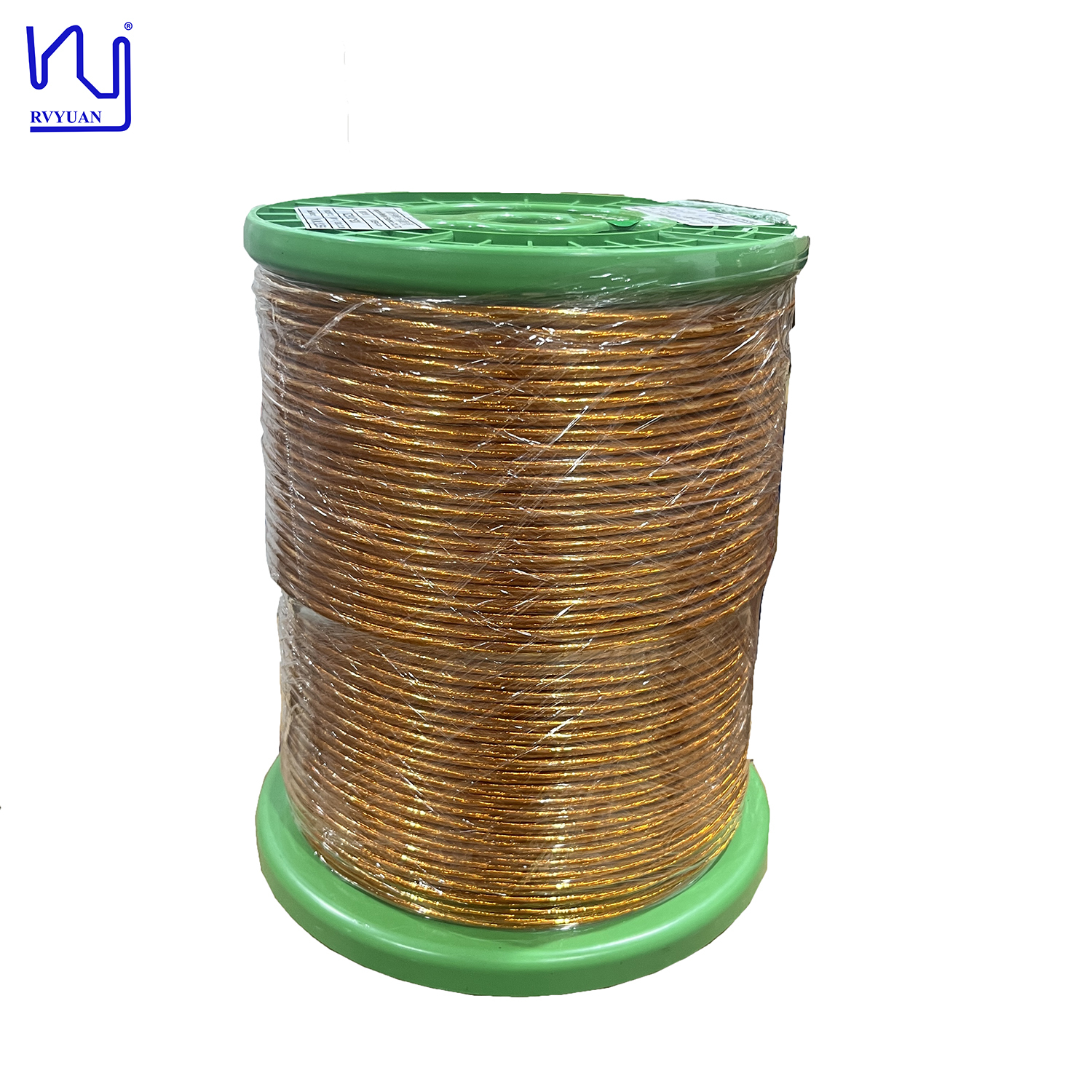

Product Images
