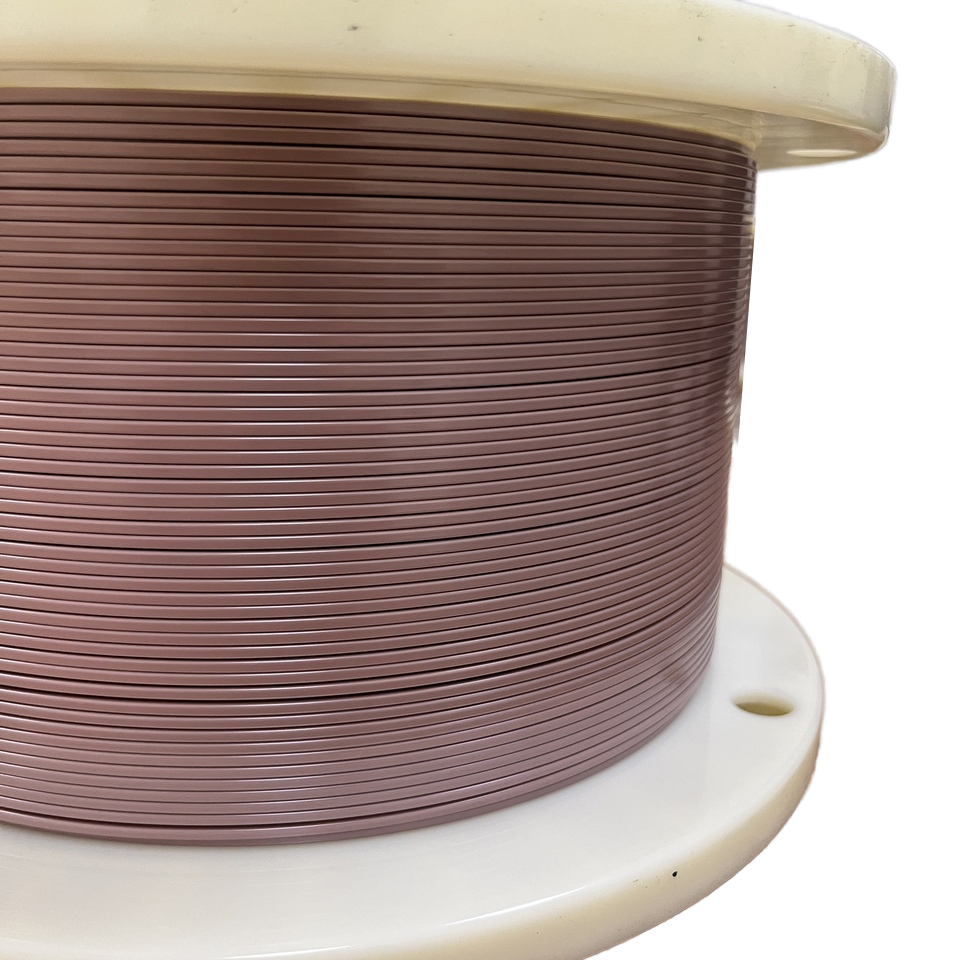

Custom PEEK Wire 2.0mm 4.0mm 5.0mm Enameled Flat Copper Wire For Medical Devices

Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: Ruiyuan
Certificación: UL/ISO9001/ISO14001/RoHS/Reach
Número de modelo: OJEADA
Cantidad de orden mínima: 50 kg
Precio: negotiable
Detalles de empaquetado: CAJA DE CARTÓN
Tiempo de entrega: 7 días
Condiciones de pago: T/T
Capacidad de la fuente: 100kg/week
Información detallada
Tipo de conductor: sólido Material: Cobre
Forma: Rectangular Ancho: 2.0 mm
Tipo: Aislado Certificados: Se aplicará el procedimiento de ensayo de la norma ISO 9001:2015 y se aplicarán los siguientes requi
Nombre del producto: Alambre de alta temperatura PEEK 2,0 mm 4,0 mm 5,0 mm alambre de cobre plano esmaltado Espesor: 1.4 mm
Resaltar:

PEEK enameled flat copper wire

,

medical device PEEK wire

,

rectangular copper wire for medical


Descripción de producto

Custom PEEK Wire 2.0mm 4.0mm 5.0mm Enameled Flat Copper Wire For Medical Devices
Product Description

PEEK wire is used in a variety of applications due to its exceptional properties. Here are some common uses:

  • Aerospace: PEEK wire is used in aircraft components and systems that require lightweight materials with high strength and thermal stability.
  • Medical Devices: In the medical field, PEEK wire is utilized for surgical instruments, implants, and other devices that must withstand sterilization processes and maintain biocompatibility.
  • Electronics: PEEK wire serves as insulation for electrical wiring in high-temperature environments, such as in motors, sensors, and connectors.
  • Automotive: It is used in automotive applications for components that need to endure high temperatures and harsh chemicals, such as in fuel systems and electrical systems.
  • Oil and Gas: PEEK wire is employed in downhole applications where resistance to extreme temperatures and corrosive environments is essential.
  • Industrial Applications: It is used in various industrial settings for components that require durability and resistance to wear and chemicals.

Overall, PEEK wire is valued for its ability to perform reliably in demanding conditions, making it suitable for high-performance applications across multiple industries.

Technical Specifications
Ref. No. Item Specification Measurement data (W607010 2A250904) Measurement data (W607010 2B250904) Measure equipment
1Copper width1.980-2.020mm2.0042.005Mircometer
2Copper thickness1.380-1.420mm1.4001.399Mircometer
3Overall width2.300-2.360 mm2.3242.321Mircometer
4Overall thickness1.700-1.760 mm1.7321.731Mircometer
5Copper radius0.350-0.450mm0.3750.408Microscope
6Copper radius0.3850.412Microscope
7Copper radius0.3990.411Microscope
8Copper radius0.4040.407Microscope
9Insulation layer thickness0.145-0.185mm0.1700.159Microscope
10Insulation layer thickness0.1620.155Microscope
11Insulation layer thickness0.1550.161Microscope
12Insulation layer thickness0.1670.165Microscope
13Insulation layer thickness0.1520.155Microscope
14Insulation layer thickness0.1610.159Microscope
15Insulation layer thickness of radius0.145-0.185mm0.1560.158Microscope
16Insulation layer thickness of radius0.1590.155Microscope
17Insulation layer thickness of radius0.1540.159Microscope
18Insulation layer thickness of radius0.1600.165Microscope
19CopperT1OKMaterial certificate
20Coating/Temperature grade240℃OKMaterial certificate
21Elongation≥40%4648Tensile tester
22Spring back angle/5.1865.098Auto spring back test
23FlexibilityAfter winding with Ø 2.0mm and Ø3.0mm diameter round rods, there should be no cracking in the insulation layer.OKOKVisual
24Adhesion≤3.00mm0.3940.671Tensile tester&Microscope
2520℃ Conductor resistance≤6.673 Ω/km6.3506.360Conductor resistance tester
26BDV≥12000 V2201021170Auto voltage tester
27PDIV≥1300 RMS (25℃,50V/S,50Hz,100Pc)14251429PDIV tester
28Heat shockAfter baking at 240℃ for 30 minutes, the insulation layer should have no cracks.OKOven
29Defect inspectionHigh voltage Pinhole: DC 3000V, 16uA00On-line inspection system
30Spool&WeightSample phase:P-30,25±15kg Mass productin:PC-630B,160± 60kgP-30P-30Visual
