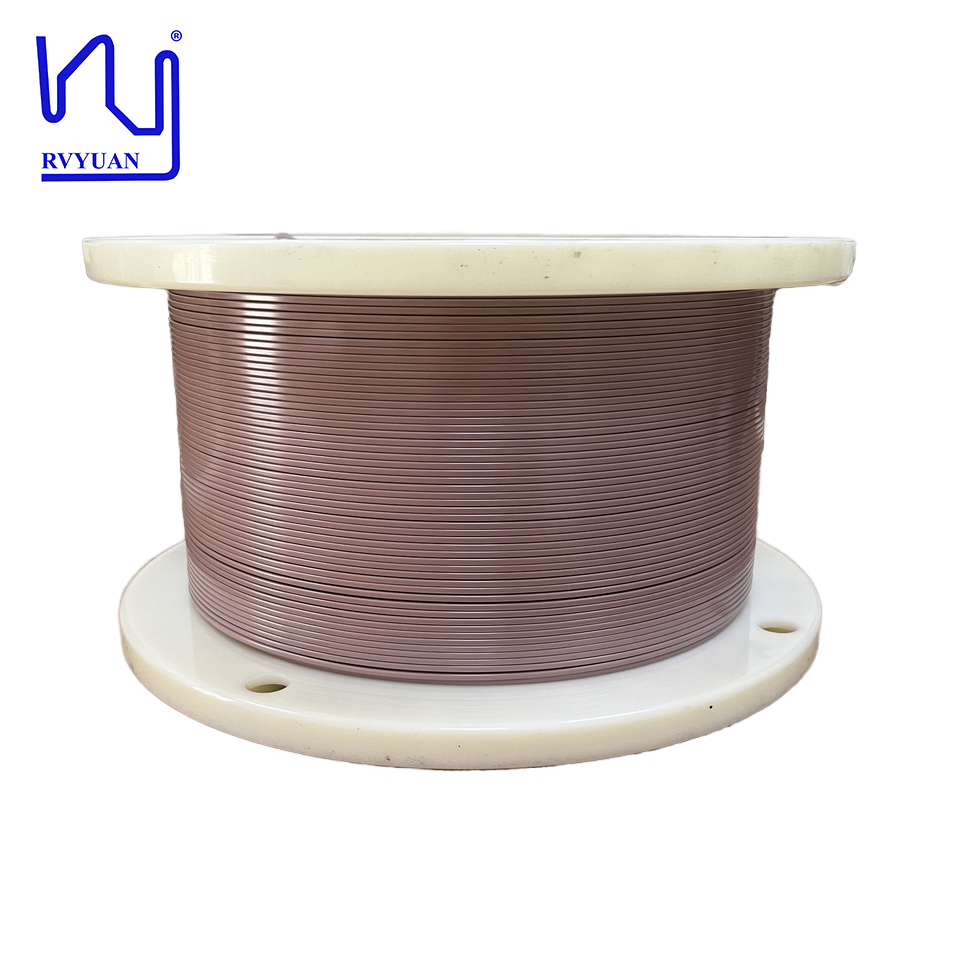

PEEK wire 1.4mmx2.0mm Enameled Flat Copper Wire

PEEK wire 1.4mmx2.0mm Enameled Flat Copper Wire
PEEK wire 1.4mmx2.0mm Enameled Flat Copper Wire
Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: Ruiyuan
Certificación: UL/ISO9001/ISO14001/RoHS/Reach
Número de modelo: OJEADA
Cantidad de orden mínima: 50 kg
Precio: negotiable
Detalles de empaquetado: CAJA DE CARTÓN
Tiempo de entrega: 7 días
Condiciones de pago: T/T
Capacidad de la fuente: 100kg/week
Mejor precio Contactar ahora
Información detallada
Tipo de conductor: sólido Material: Cobre
Forma: Rectangular Ancho: 2.0 mm
Tipo: Aislado Certificados: Se aplicará el procedimiento de ensayo de la norma ISO 9001:2015 y se aplicarán los siguientes requi
Nombre del producto: Alambre PEEK Alambre de cobre plano esmaltado de 1,4 mm x 2,0 mm Espesor: 1.4 mm
Resaltar:

PEEK enameled flat copper wire

,

1.4mmx2.0mm rectangular copper wire

,

PEEK insulated flat wire

Descripción de producto

PEEK wire 1.4mmx2.0mm Enameled Flat Copper Wire
PEEK wire, made from polyetheretherketone, is a high-performance material renowned for its exceptional properties, making it suitable for a wide range of demanding applications. This wire is particularly sought after in industries requiring high-temperature resistance, chemical stability, high strength, and superior electrical insulation.
Applications
  • Aerospace: PEEK wire is used in the aerospace field for its light weight, high temperature resistance, and ability to withstand extreme conditions. It is used to manufacture satellite cables and aircraft engine windings.
  • Automotive Industry: In automotive applications, PEEK wire is used for motor windings, particularly in high-voltage environments, where it helps reduce corona discharge and extend motor life. It is also used as cable ties for securing wiring and in the production of wear-resistant components.
Specifications
No. Item Specification Measurement data Measure equipment
1 Copper width 1.980-2.020mm 2.004 | 2.005 Mircometer
2 Copper thickness 1.380-1.420mm 1.400 | 1.399 Mircometer
3 Overall width 2.300-2.360 mm 2.324 | 2.321 Mircometer
4 Overall thickness 1.700-1.760 mm 1.732 | 1.731 Mircometer
5 Copper radius 0.350-0.450mm 0.375 | 0.408 Microscope
6 Copper radius 0.385 | 0.412 Microscope
7 Copper radius 0.399 | 0.411 Microscope
8 Copper radius 0.404 | 0.407 Microscope
9 Insulation layer thickness 0.145-0.185mm 0.170 | 0.159 Microscope
10 Insulation layer thickness 0.162 | 0.155 Microscope
11 Insulation layer thickness 0.155 | 0.161 Microscope
12 Insulation layer thickness 0.167 | 0.165 Microscope
13 Insulation layer thickness 0.152 | 0.155 Microscope
14 Insulation layer thickness 0.161 | 0.159 Microscope
15 Insulation layer thickness of radius 0.145-0.185mm 0.156 | 0.158 Microscope
16 Insulation layer thickness of radius 0.159 | 0.155 Microscope
17 Insulation layer thickness of radius 0.154 | 0.159 Microscope
18 Insulation layer thickness of radius 0.160 | 0.165 Microscope
19 Copper T1 OK Material certificate
20 Coating/Temperature grade 240℃ OK Material certificate
21 Elongation ≥40% 46 | 48 Tensile tester
22 Spring back angle / 5.186 | 5.098 Auto spring back test
23 Flexibility After winding with Ø 2.0mm and Ø3.0mm diameter round rods, there should be no cracking in the insulation layer. OK | OK Visual
24 Adhesion ≤3.00mm 0.394 | 0.671 Tensile tester&Microscope
25 20℃ Conductor resistance ≤6.673 Ω/km 6.350 | 6.360 Conductor resistance tester
26 BDV ≥12000 V 22010 | 21170 Auto voltage tester
27 PDIV ≥1300 RMS (25℃,50V/S,50Hz,100Pc) 1425 | 1429 PDIV tester
28 Heat shock After baking at 240℃ for 30 minutes, the insulation layer should have no cracks. OK Oven
29 Defect inspection High voltage Pinhole: DC 3000V, 16uA
Parricle: Height＞0.100mm need to be marked
Impurity:Length or width ≥ 0.4mm or area ≥0.16mm² need to be marked		 0 | 0
0 | 0
0 | 2		 On-line inspection system
30 Spool&Weight Sample phase:P-30,25±15kg Mass productin:PC-630B,160± 60kg P-30 | P-30 Visual
PEEK wire 1.4mmx2.0mm Enameled Flat Copper Wire 0
