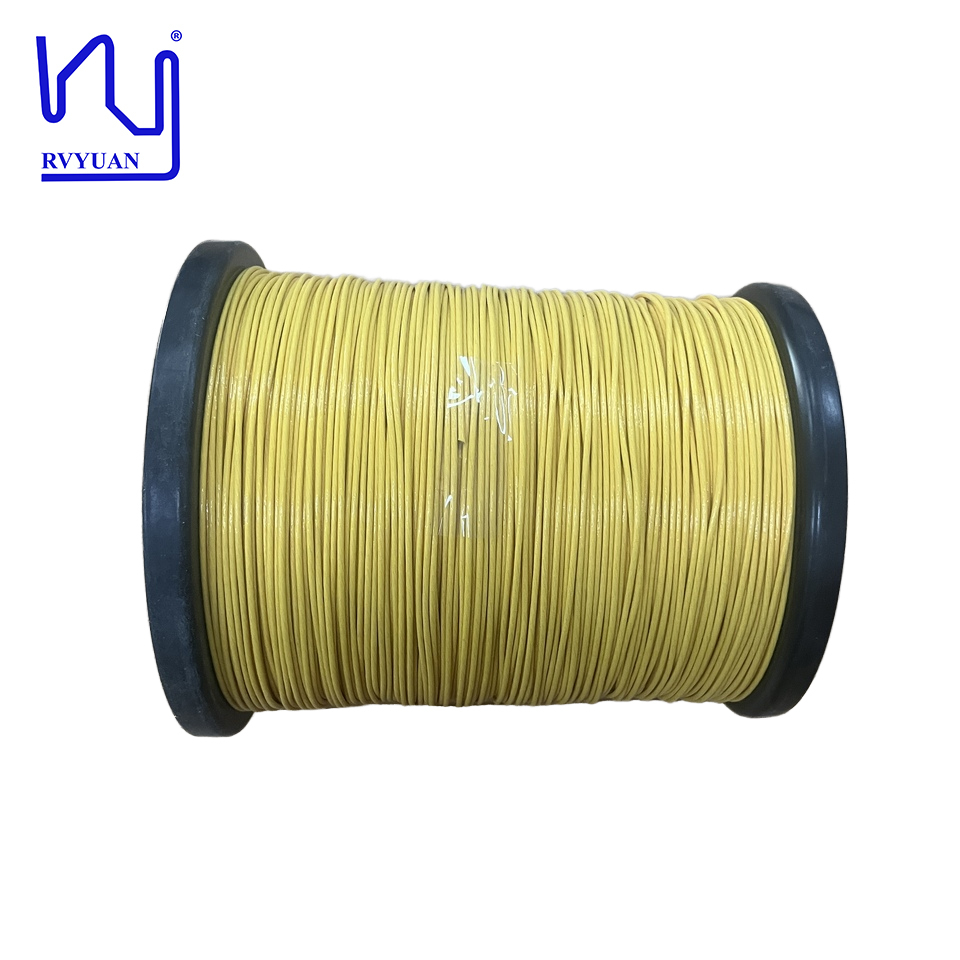

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

Informacion basica

Lugar de origen:	PORCELANA
Nombre de la marca:	RVYUAN
Certificación:	UL/ISO9001/ISO14001/RoHS/Reach
Número de modelo:	0.1 mm

Cantidad de orden mínima:	1000 metros
Precio:	negotiable
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	7 días
Condiciones de pago:	T/t/paypal
Capacidad de la fuente:	1ton/month

Mejor precio Contactar ahora

Información detallada

Nombre del producto:	UL SEGURIDAD 0.1MMX250 STRANDS TIW LITZ ETFE ETFE EXTRUVE	Calificación térmica:	155
Diámetro de un solo alambre:	0.1 mm	Material conductor:	Cobre
No. de hilos:	250	Inyección:	ETFE
Resaltar:	UL safety Litz wire ETFE coating , TIW Litz wire 250 strands , ETFE extruded triple insulated wire

Descripción de producto

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

The combination of these properties makes ETFE insulated litz wire particularly suitable for high-frequency transformer winding applications where reliability and performance are critical. Its lightweight and flexible design, coupled with its excellent electrical performance, makes it the first choice for engineers and designers seeking efficient high-frequency wiring solutions.

Product Specifications

Characteristics	Technical Requests	Sample 1	Sample 2	Sample 3	Conclusion
Appearance	Smooth & Clean	OK	OK	OK	OK
Diameter of single wire	0.10±0.003mm	0.100	0.100	0.099	OK
Thickness of Enamel	≥ 0.004mm	0.006	0.007	0.008	OK
OD of single wire	0.105-0.109mm	0.106	0.107	0.107	OK
Twist Pitch	S28±2	OK	OK	OK	OK
Insulation Thickness	Min.0.1mm	0.12	0.12	0.12	OK
OD of Litz Wire	Max. 2.2mm	2.16	2.16	2.12	OK
DC Resistance	Max.9.81 Ω/km	9.1	9.06	9.15	OK
Elongation	≥ 13 %	23.1	21.9	22.4	OK
Breakdown Voltage	≥ 5K V	8.72	9.12	8.76	OK
Pin Hole	0 hole/5m	0	0	0	OK

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
