Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor

Informacion basica
Lugar de origen: China.
Nombre de la marca: RVYUAN
Certificación: IEC/NEMA/JIS/RoHS/ISO
Número de modelo: UEWH
Cantidad de orden mínima: 10kg
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 7 días
Condiciones de pago: T/T, PayPal
Capacidad de la fuente: Satisfacer su demanda
Información detallada
Shape: Rectangular Width of conductor: 2.4mm
Unilateral Insulation Layer Thickness (Width): 0.025mm Thickness of conductor: 0.5mm
Applications: Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor Thermal Grade: 220
Key word: Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor
Resaltar:

Flat Copper Wire Rectangular

,

2.4mm Solderable Copper Wire

,

Motor Solderable Copper Wire


Descripción de producto

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor



If you are looking for reliable, high-performance solutions for motor and transformer winding, our custom enameled rectangular copper wires are the ideal choice. We are committed to providing high quality and customized services, and are committed to supporting your projects with the best quality enameled rectangular copper wires on the market.



Item



Conductor dimension



Unilateral

insulation thickness

Overall

dimension



Dielectric

breakdown

voltage



Conductor

resistance

  T W T W

 T



W
Unit

mm



mm



mm mm

mm

mm

kv

Ω/km 20℃

SPEC



AVE



0.500



2.400



0.025 /

/



/

Max



0.509



2.460



0.040 0.550 0.0550 2.500   16.090

Min



0.491



2.340 0.010





  0.700

No. 1



0.501



2.405 0.039 0.544

0.544



2.483



4.880

















  14.437

No. 2 0.500 2.406 0.039 0.545 0.545 2.485 4.331
No. 3 0.502 2.407 0.039 0.543 0.543 2.484 3.660
No. 4             4.515
No. 5             4.600
No. 6             4.770
No. 7             4.440
No. 8             4.250
No. 9             3.990
No. 10             3.750

Avg



0.501



2.406 0.022 0.039 0.544 2.484 4.319

No.of reading



3 3 3 3 3 3 10

Min. reading



0.500 2.405 0.021 0.022

0.543



2.483 3.660

Max. reading



0.502 2.407 0.023 0.039

0.545



2.485 4.880

Range



0.002



0.002



0.002 0.001

0.002



0.002



1.220

Result



OK



OK



OK



OK

OK



OK



OK



OK

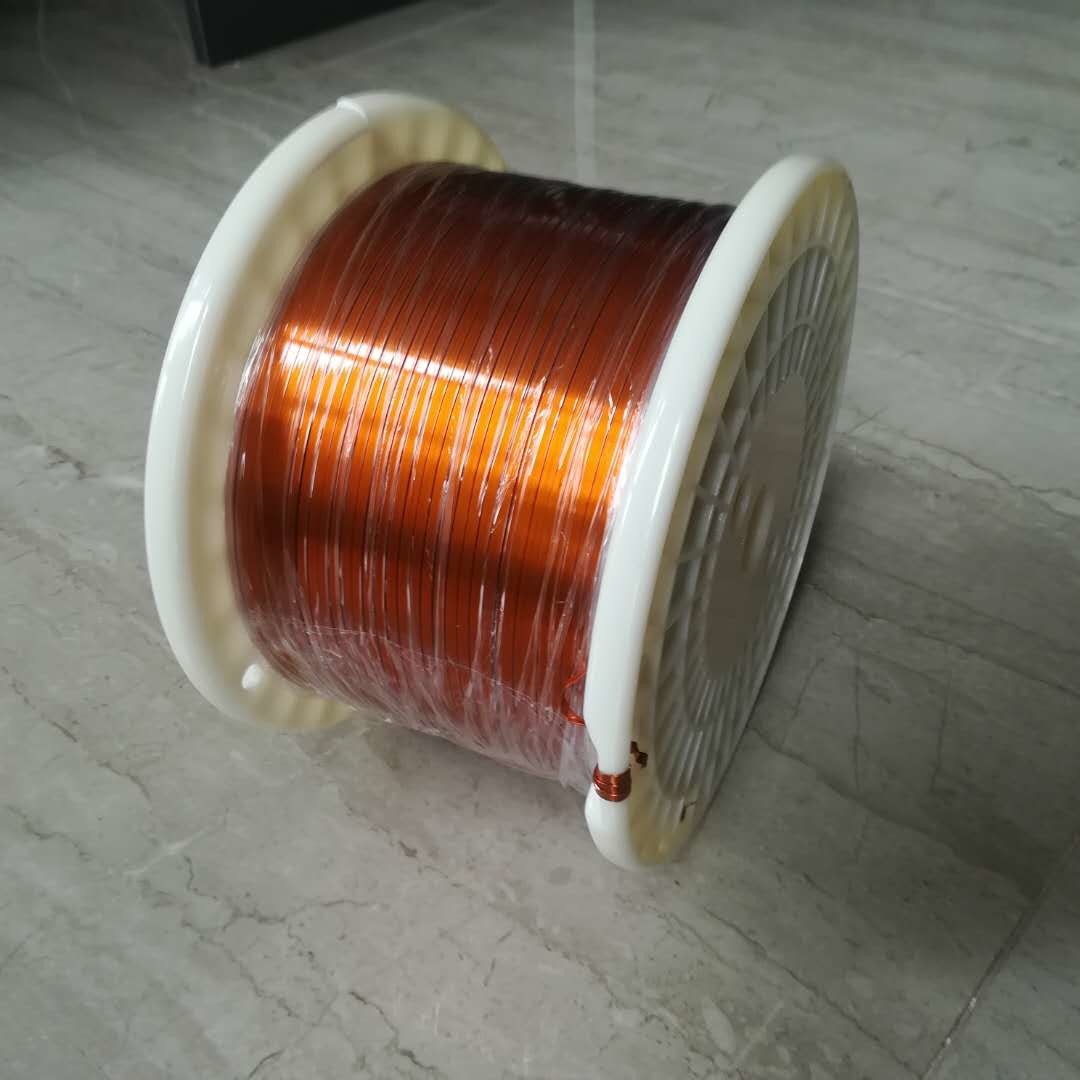

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor 0
