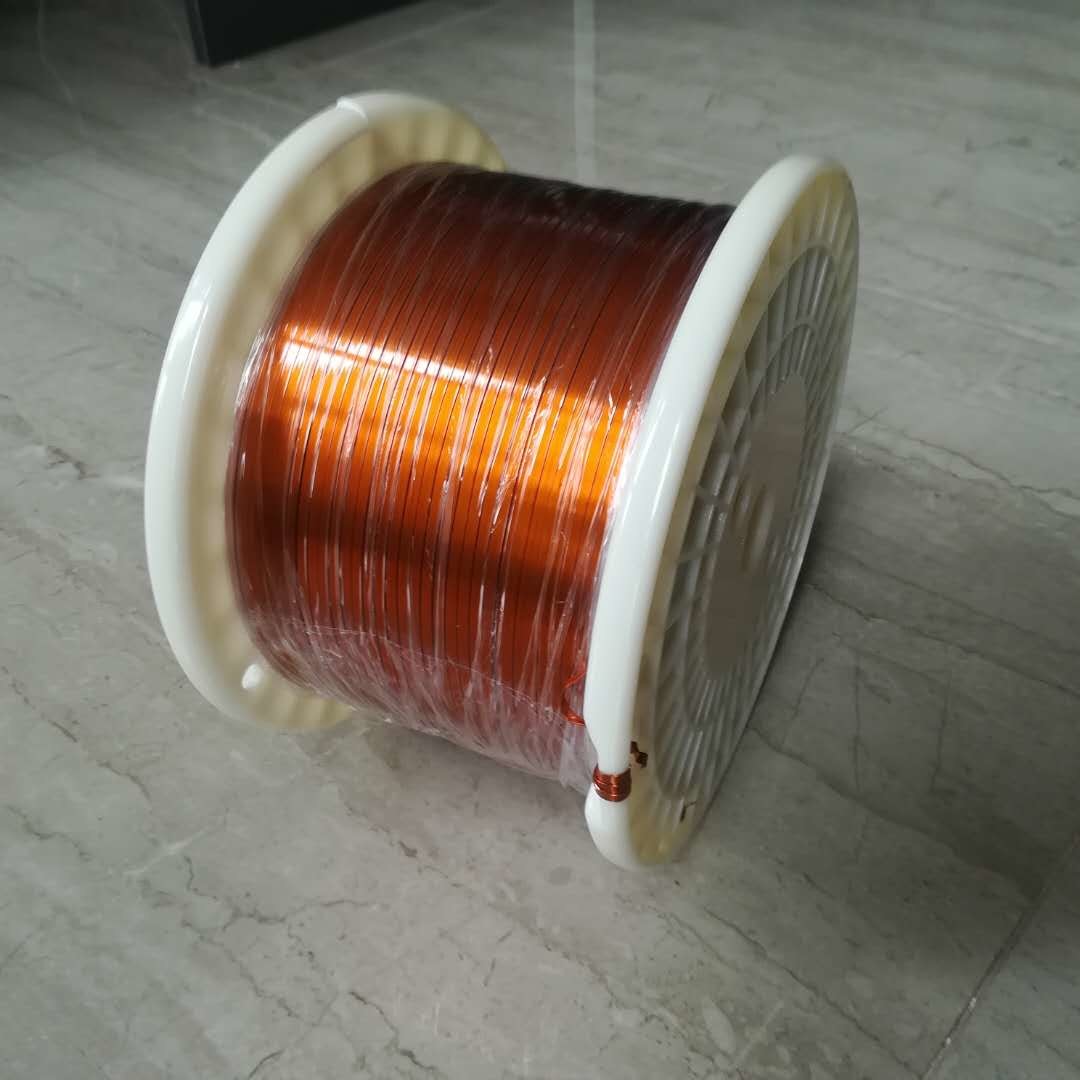

Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire For Vehicles

Informacion basica
Lugar de origen: China
Nombre de la marca: RVYUAN
Certificación: IEC/NEMA/JIS/RoHS/ISO
Número de modelo: Los demás elementos
Cantidad de orden mínima: 10kg
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 7 días
Condiciones de pago: T/T, PayPal
Capacidad de la fuente: Satisfacer su demanda
Información detallada
Shape: Rectangular Width of conductor: 2.0mm
Unilateral Insulation Layer Thickness (Width): 0.025mm Thickness of conductor: 0.1mm
Applications: Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles Thermal Grade: 220
Key word: Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles
Resaltar:

Cusntomized rectangular copper wire

,

rectangular copper Conductor wire

,

0.1mm rectangular magnet wire


Descripción de producto

Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles

One of the highlights of Ruiyuan enameled flat copper wire is its excellent high temperature resistance. Our high temperature wire can withstand temperatures from 180 degrees Celsius to 240 degrees Celsius, making it ideal for applications in harsh environments. Whether you are in the automotive, aerospace or electrical industry, our enameled flat copper wire can withstand the pressure and perform excellently.



TEST REPORT
Model SFT-AIW Date
Size(mm): 0.100 × 2.000 Lot
Item

Conductor

dimension

Unilateral insulation

layer thickness

Overall dimension Breakdown
Thickness Width Thickness Width Thickness Width voltage
Unit   mm mm mm mm mm mm kv
SPEC Ave 0.1 2 0.025 0.025
Max 0.109 2.06 0.04 0.04 0.15 2.1
Min 0.091 1.94 0.01 0.01     0.7
No. 1   0.104 2.003 0.021 0.012 0.146 2.027 1.063
No. 2             1.085
No. 3             1.132
No. 4             1.041
No. 5             1.015
Avg 0.104 2.003 0.021 0.012 0.146 2.027 1.067
NO.of reading 1 1 1 1 1 1 5
Min. reading 0.104 2.003 0.021 0.012 0.146 2.027 1.015
Max. reading 0.104 2.003 0.021 0.012 0.146 2.027 1.132
Range 0 0 0 0 0 0 0.117



Cusntomized Rectangular Copper Conductor  0.1mm Enameled Flat Copper Wire For Vehicles 0
