Thermal Grade 220 Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor

Informacion basica
Lugar de origen: China.
Nombre de la marca: RVYUAN
Certificación: IEC/NEMA/JIS/RoHS/ISO
Número de modelo: Clase 220
Cantidad de orden mínima: Diversos tipos con el differet MOQ
Precio: negotiable
Detalles de empaquetado: Carrete con cartón
Tiempo de entrega: 2 a 15 días hábiles
Condiciones de pago: Negociación, T/T, L/C
Capacidad de la fuente: Satisfacer su demanda
Información detallada
Shape: Rectangular Conductor Dimension (Width): 2mm
Unilateral Insulation Layer Thickness (Width): 0.5mm Applications: Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor
Thermal Grade: 220 Key word: Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor
Resaltar:

2.0mm Enameled Flat Copper Wire

,

Thermal Enameled Flat Copper Wire

,

2mm enamelled wire


Descripción de producto

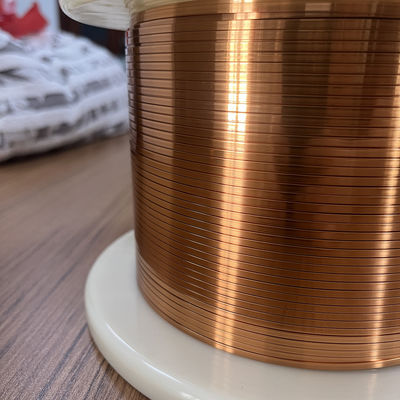

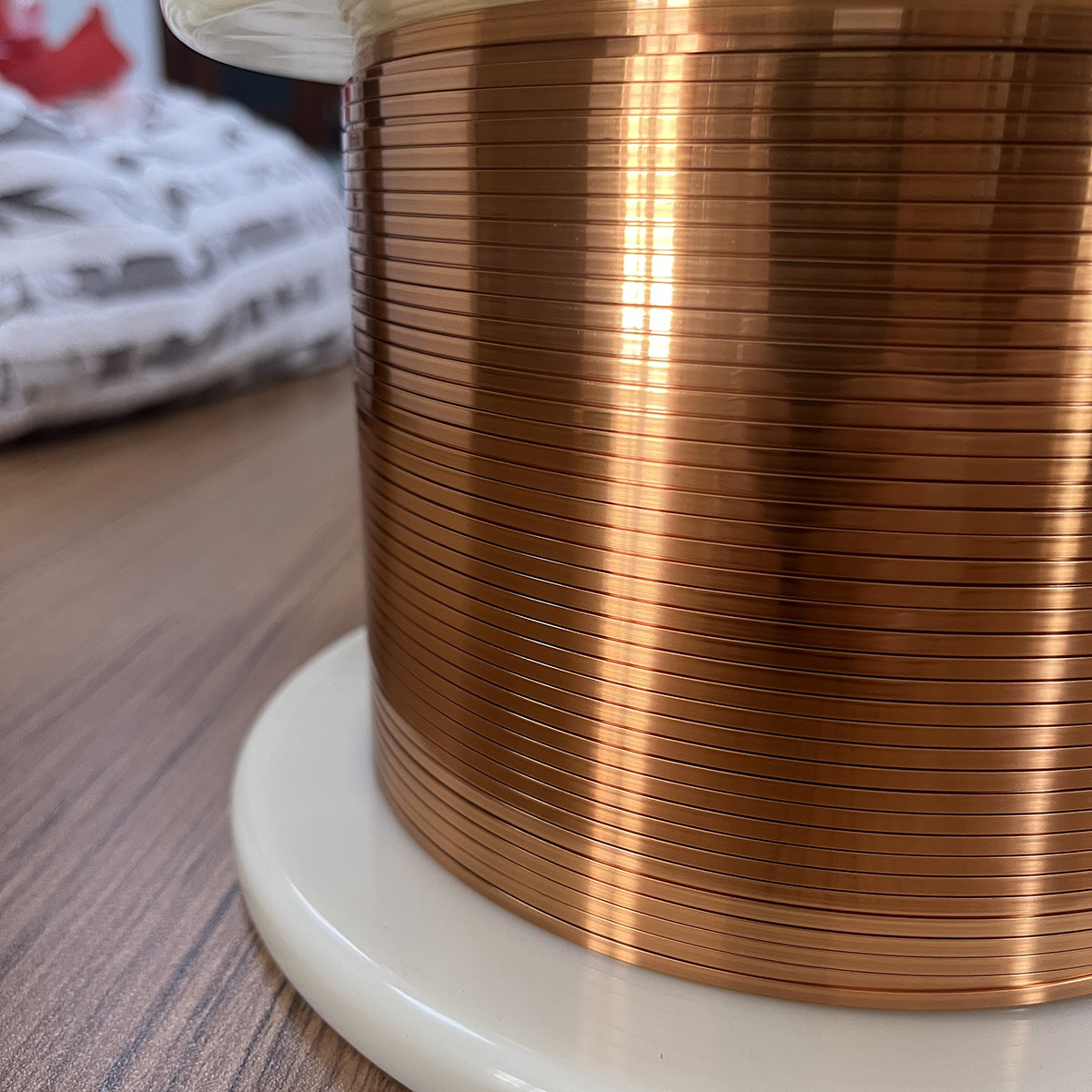

Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor



Our rectangular enameled copper wires come in a wide range of sizes, allowing for flexibility in design and use. We can produce flat wires with thicknesses ranging from an extremely thin 0.03mm to a sturdy 3mm, suitable for a wide range of projects. In addition, our flat wires are available in widths up to 15mm, giving you the versatility you need for complex and large-scale applications. A 25:1 width-to-thickness ratio ensures our wires provide superior performance while maintaining structural integrity.



Item



Conductor dimension



Unilateral

adhesive

paint thickness

Unilateral

insulation layer thickness

Overall  dimension



Dielectric

breakdown voltage



Conductor

resistance

Thickness Width Thickness Width

Thickness



Width
Unit

mm



mm



mm mm mm

mm



mm



kv



Ω/km 20℃

SPEC



AVE



0.500



2.000



/ 0.025 0.025

/



/

Max

0.509



2.060



/ 0.040 0.040 0.0560 2.110   19.490

Min



0.491



1.940



0.002 0.010 0.010

/



/ 0.700

No. 1



0.495



2.001 0.003 0.023 0.022

0.548



2.052



2.310

















  18.420

No. 2               2.690
No. 3               2.520
No. 4               3.101
No. 5               3.454
No. 6               /
No. 7               /
No. 8               /
No. 9
No. 10               /

Avg



0.495



2.001 0.003 0.023 0.022

0.548



2.052 2.815

Number of reading



1



1





1



1



5

Min. reading



0.495



2.001 0.003 0.023 0.022

0.548



2.052 2.310

Max. reading



0.495



2.001 0.003 0.023 0.022

0.548



2.052 3.454

Range



0.000



0.000





0.000



0.000



1.144

Result



OK



OK





OK



OK



OK



OK
