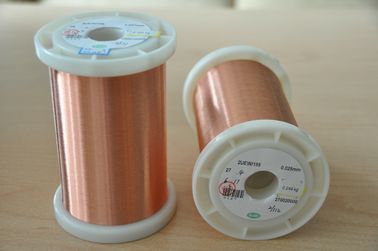

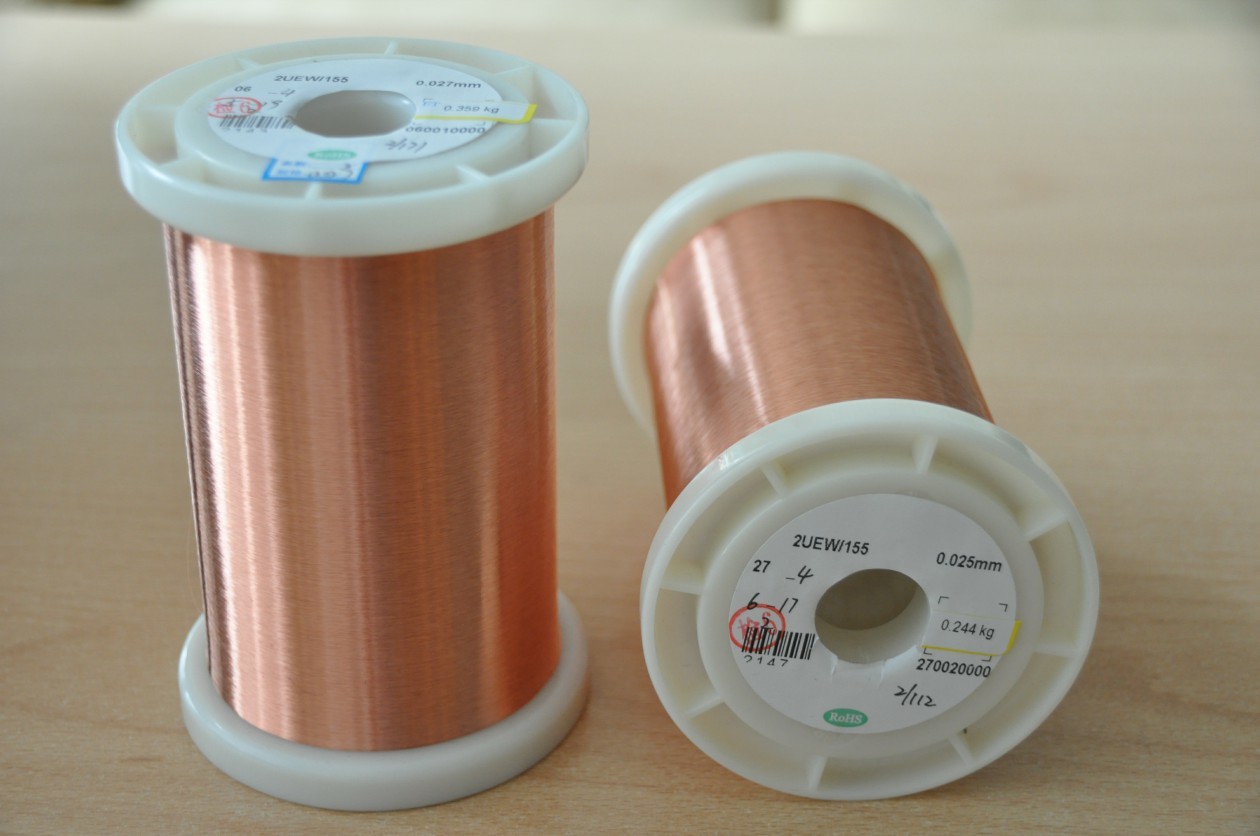

0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid

Informacion basica

Place of Origin:	China
Nombre de la marca:	Ruiyuan
Certificación:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.18mm

Minimum Order Quantity:	5 kg
Precio:	negotiable
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Mejor precio Contactar ahora

Información detallada

Product Name:	0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid	Thermal rating:	220
Insulation Material:	AIW	Diameter:	0.18mm
Conductor material:	Copper	Key word:	0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid

Descripción de producto

0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid

Ideal for applications such as voice coil winding, this high temperature self-bonding wire is favored for its excellent conductivity and heat resistance. Its rugged construction ensures long life and reliability, making it ideal for high-performance devices. You can trust our wire to meet the needs of your most challenging projects.

Test Items	Requirements	Test Data			Result
		Min Sample	Ave Sample	Max Sample
Conductor Diameter	0.18mm ±0.003mm	0.180	0.180	0.180	OK
Thickness of Insulation	≥0.008mm	0.019	0.020	0.020	OK
Basecoat dimensions Overall dimensions	Min.0.226	0.210	0.211	0.212	OK
Bonding film thickness	≤ 0.004mm	0.011	0.011	0.012	OK
DC Resistance	≤ 715Ω/km	679	680	681	OK
Elongation	≥15%	29	30	31	OK
Breakdown Voltage	≥2600V	4669			OK
Bonding Strength	Min.29.4 g	50			OK
