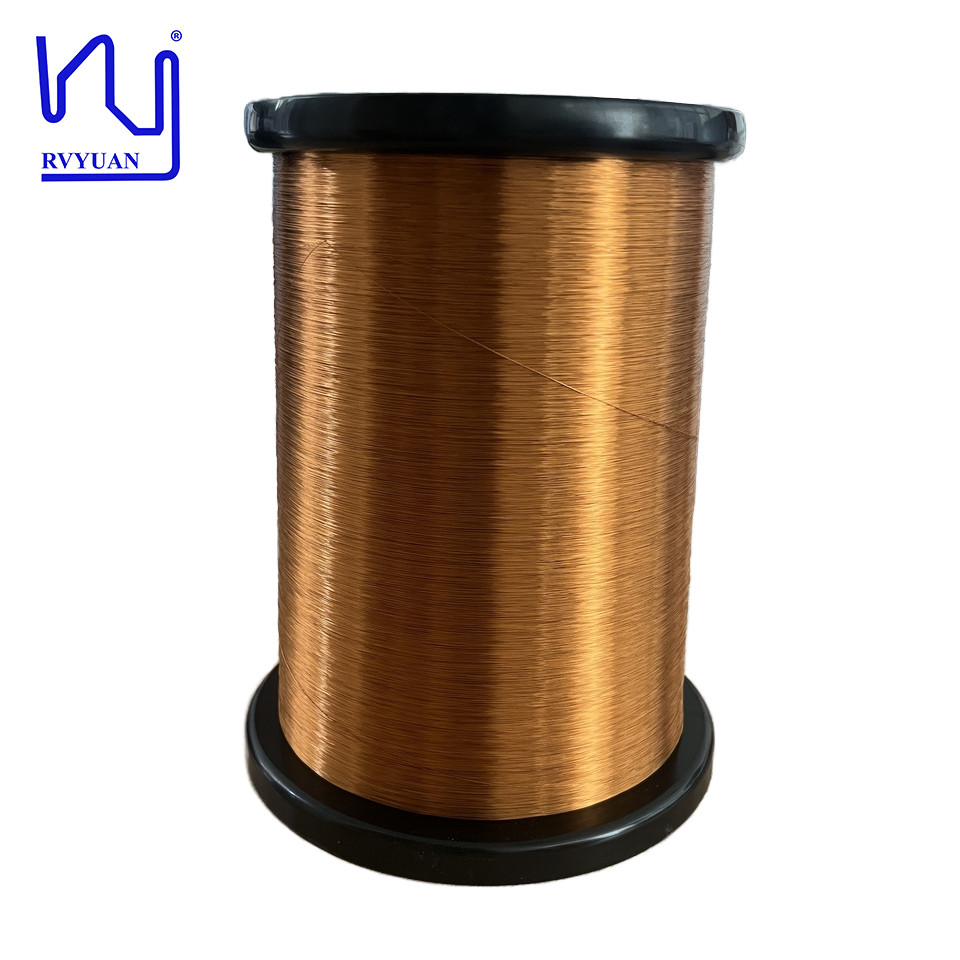

AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire

Informacion basica

Place of Origin:	China
Nombre de la marca:	Ruiyuan
Certificación:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.18mm

Minimum Order Quantity:	5 kg
Precio:	negotiable
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Mejor precio Contactar ahora

Información detallada

Product Name:	AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire	Thermal rating:	220
Insulation Material:	AIW	Diameter:	0.18mm
Conductor material:	Copper	Key word:	AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire

Descripción de producto

AIW/EIW/UEW/PEW0.05mm- 0.20mm Enameled Copper Wire Magnet Wire

AIW enameled round copper wire stands out for its self-adhesive properties, making it extremely easy to handle. This feature not only increases winding efficiency but also ensures that the wire is firmly fixed during handling. Whether you are an engineer, hobbyist or manufacturer, this wire will simplify your work while providing excellent performance.

Test Items	Requirements	Test Data			Result
		Min Sample	Ave Sample	Max Sample
Conductor Diameter	0.18mm ±0.003mm	0.180	0.180	0.180	OK
Thickness of Insulation	≥0.008mm	0.019	0.020	0.020	OK
Basecoat dimensions Overall dimensions	Min.0.226	0.210	0.211	0.212	OK
Bonding film thickness	≤ 0.004mm	0.011	0.011	0.012	OK
DC Resistance	≤ 715Ω/km	679	680	681	OK
Elongation	≥15%	29	30	31	OK
Breakdown Voltage	≥2600V	4669			OK
Bonding Strength	Min.29.4 g	50			OK
